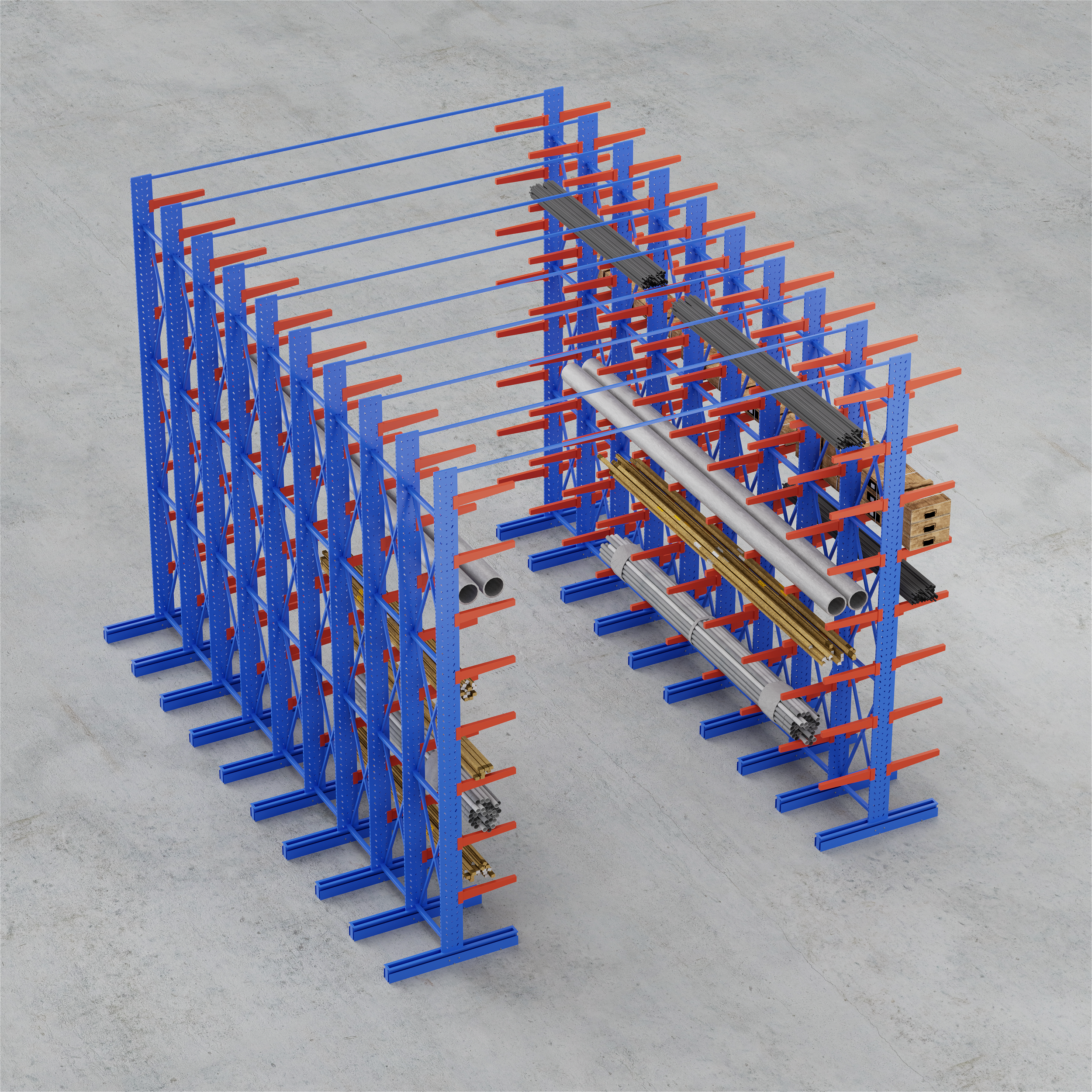

The Zhuku Cantilever Racking is a professional storage solution designed for long-length, oversized, and irregular materials that are difficult to store with conventional pallet racking systems.
With an open-front structure consisting of strong uprights, stable bases, and adjustable cantilever arms, the system provides convenient access for loading and unloading long goods such as steel pipes, timber, profiles, panels, and industrial components.
Zhuku provides customized cantilever storage solutions based on material dimensions, load requirements, warehouse layout, and handling methods, helping customers improve storage efficiency, safety, and space utilization.
The Cantilever Racking System stores long materials horizontally on adjustable arms supported by vertical columns.
1. Material Placement
Long goods are loaded onto the cantilever arms using forklifts, cranes, or manual handling equipment.
2. Adjustable Storage
Arm positions can be adjusted according to material size and storage requirements.
3. Easy Retrieval
The open-front structure allows quick access to stored materials without obstruction.
Open-Front Design for Easy AccessUnlike traditional racks with front columns, cantilever racks provide unobstructed access to stored materials. Advantages:
|
Adjustable Cantilever ArmsThe arm system can be configured according to different material sizes and weights. Benefits:
|
Heavy-Duty Steel StructureDesigned for industrial applications requiring stable and reliable storage. Features:
|

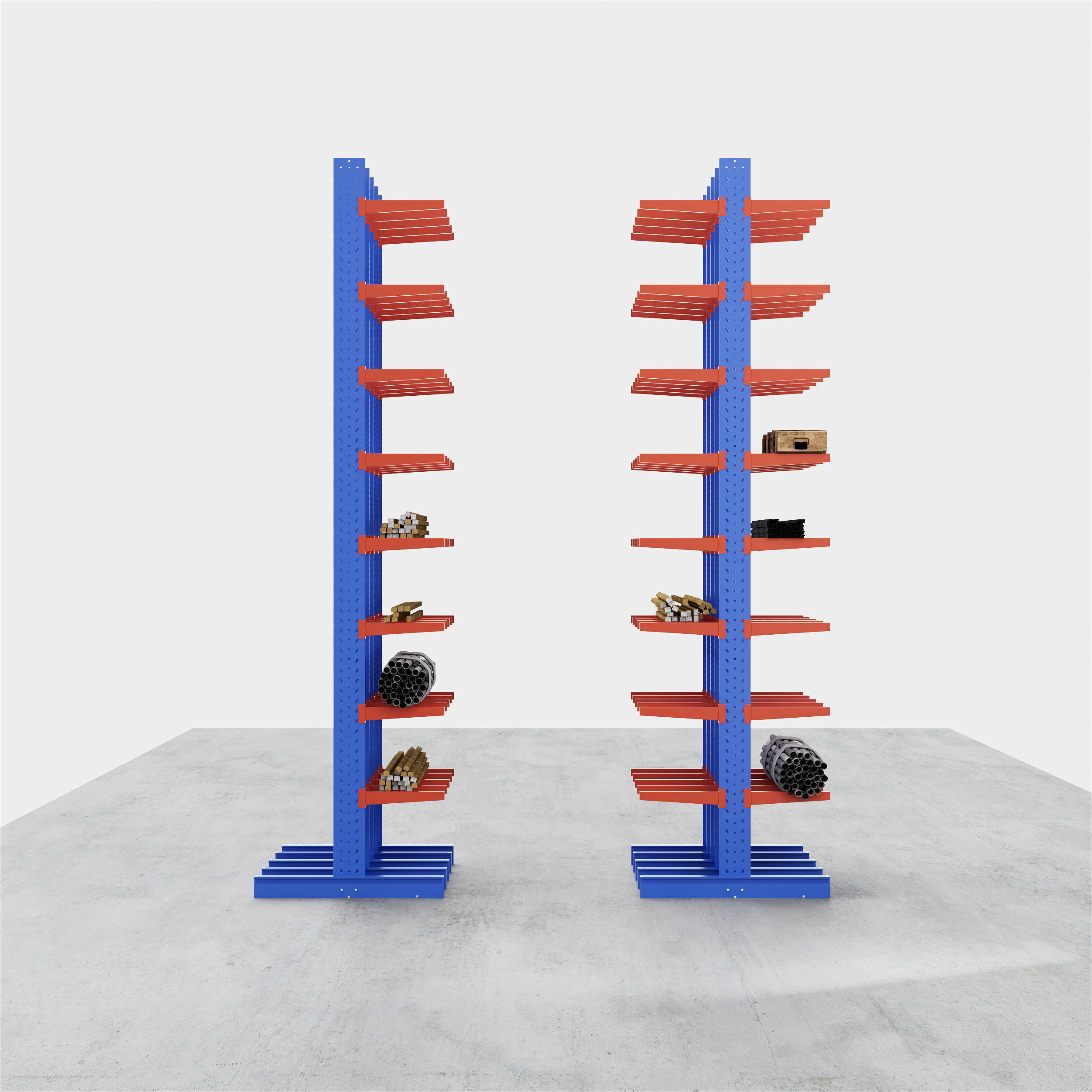

Single-Sided & Double-Sided OptionsZhuku provides flexible rack configurations for different warehouse layouts. Options:
|
Customized Storage SolutionsThe system can be designed according to:
|

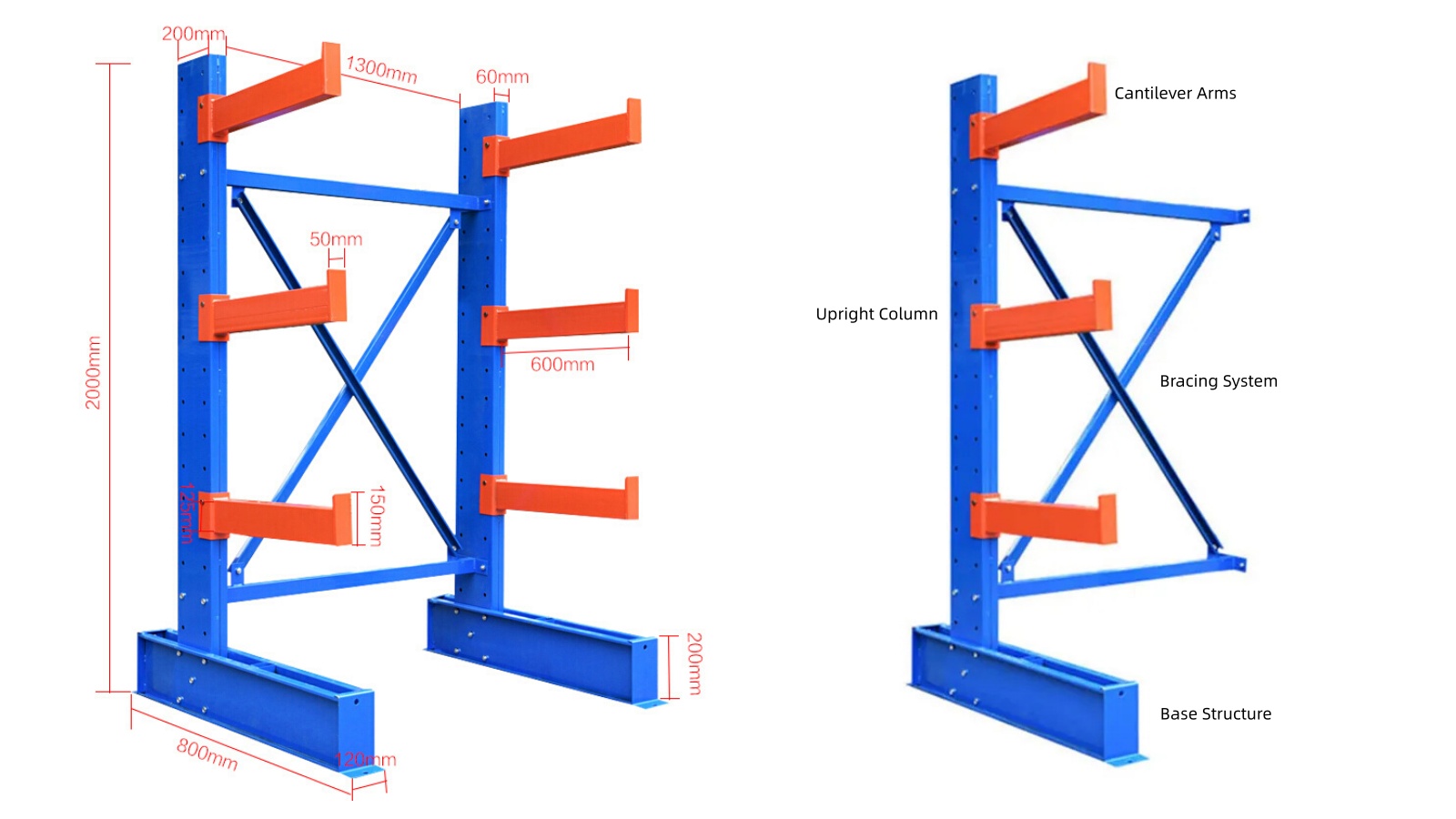

Upright ColumnThe vertical column is the main supporting structure of the cantilever rack, providing strength and stability for the entire system. |
Base StructureThe reinforced base improves overall stability and supports the load transferred from the arms. |
Cantilever ArmsAdjustable arms support stored materials and can be customized for different lengths and load requirements. |
Bracing SystemThe bracing structure strengthens the rack frame and ensures safe operation under heavy loads. |
Zhuku Cantilever Racking System supports customized designs beyond the standard specifications according to project requirements.
| Type | Upright Specification (mm) | Upright Height (mm) | Arm Specification (mm) | Arm Length (mm) | Load per Arm (kg) |
| Light-Duty | 50×100×2.0 | ≤1800 | 40×60×1.5 | ≤700 | ≤150 |
| 60×120×2.0 | ≤2000 | 40×80×1.5 | ≤1000 | ≤250 | |
| Medium-Duty | 70×140×2.0 | ≤2500 | 50×100×2.0 | ≤1100 | ≤350 |
| 50×120×1.5 | ≤1100 | ≤400 | |||
| 50×120×2.0 | ≤1100 | ≤450 | |||
| 80×180×2.0 | ≤3000 | 50×140×1.5 | ≤1200 | ≤500 | |
| 50×140×2.0 | ≤1200 | ≤600 | |||
| Heavy-Duty | 100×200×2.5 | ≤3500 | 100×100×2.0 | ≤1300 | ≤1000 |
| 60×160×2.0 | ≤1500 | ≤1000 |
Note: Specifications beyond the listed ranges can be customized according to warehouse requirements.
Designed specifically for products that cannot be efficiently stored with conventional pallet racks.
Vertical storage design helps maximize available warehouse space.
The open structure enables direct forklift and crane access.
Adjustable arms and customized designs meet different material storage requirements.
Strong steel construction ensures stable operation in demanding environments.
The Zhuku Cantilever Racking System is widely used in industries that require flexible storage for long and heavy materials.
Steel & Metal IndustrySuitable for storing:
Benefits:
|
Timber & Wood ProcessingDesigned for:
Benefits:
|
Manufacturing IndustrySuitable for oversized production materials:
Benefits:
|
Building Materials IndustryIdeal for:
|
Zhuku provides professional warehouse storage equipment design, manufacturing, and customized solutions for industrial applications.
Our Cantilever Racking System delivers:
From steel and metal processing to manufacturing and logistics industries, Zhuku helps customers create safer, more organized, and efficient storage systems.
