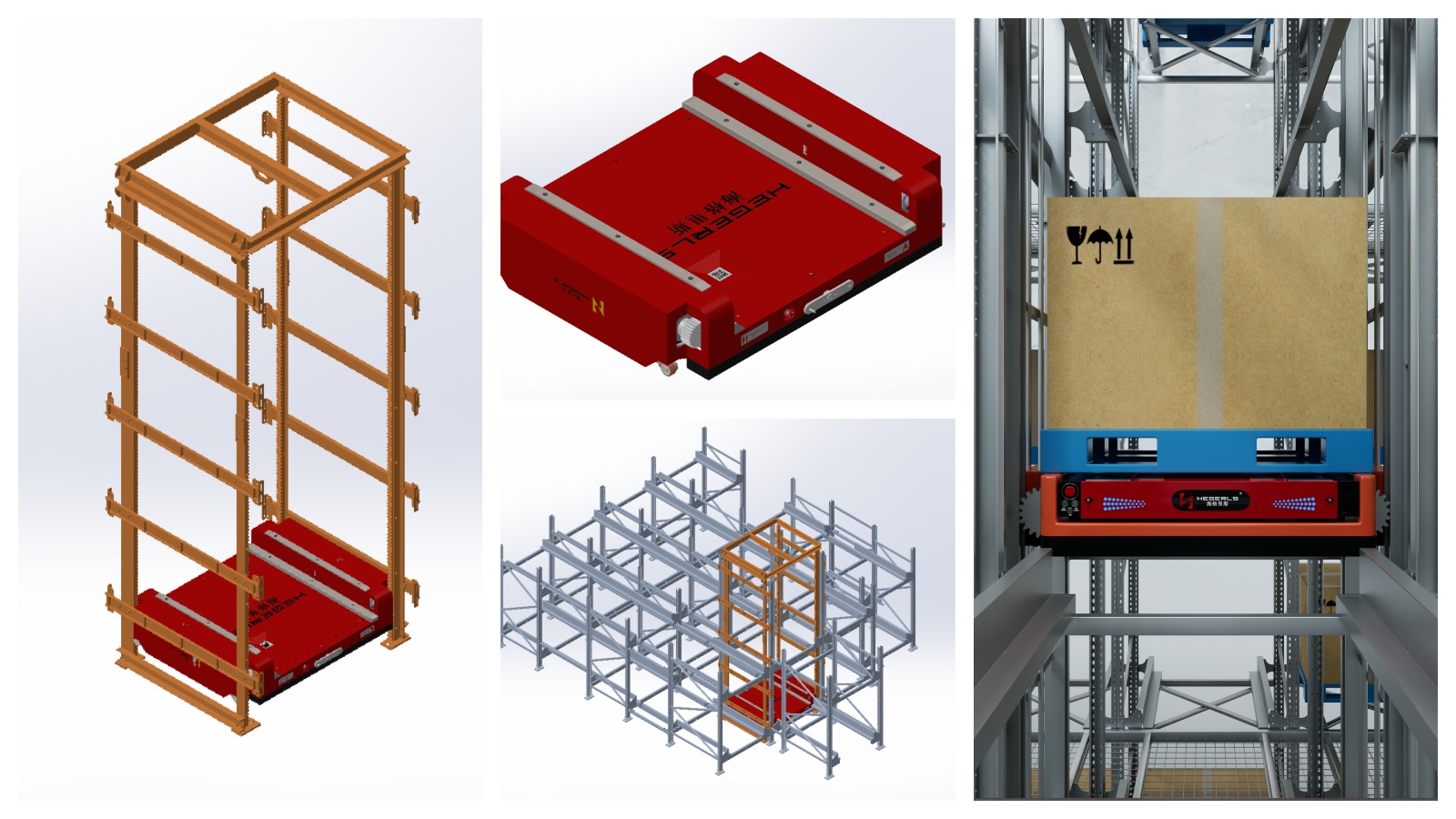

The Zhuku Vertical Two-Way Shuttle System is an intelligent vertical transfer solution designed for multi-level automated storage systems.

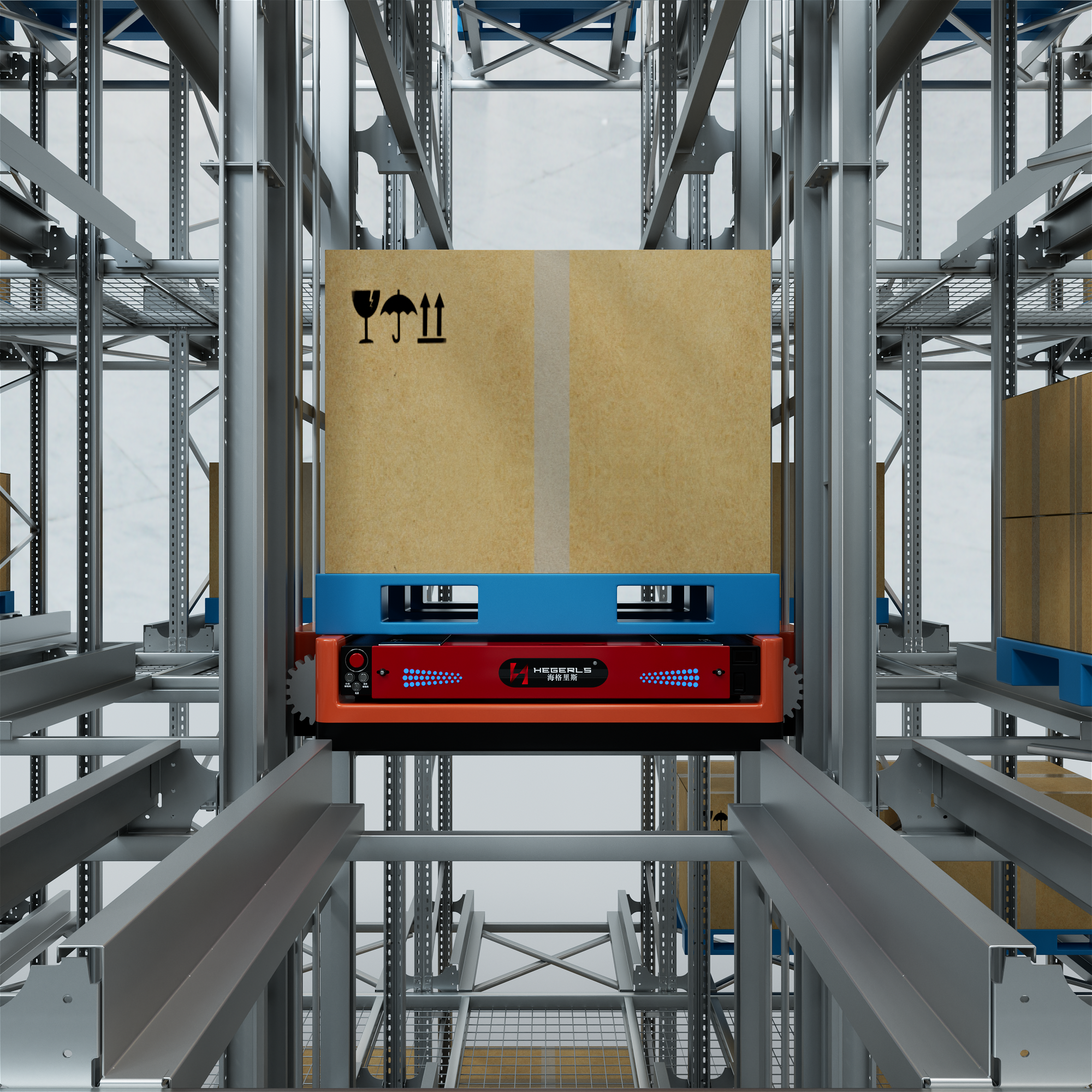

Unlike traditional lifting equipment that uses a fixed platform to move goods between levels, the Vertical Two-Way Shuttle is a vertically moving shuttle vehicle that can carry pallets or four-way shuttle vehicles directly in the vertical direction.
By enabling shuttle-based vertical movement, the system provides an efficient Z-axis transfer solution for automated warehouses, reducing equipment complexity, improving space utilization, and supporting high-density three-dimensional storage operations.
When integrated with four-way shuttle systems, it enables multi-level shuttle operation and helps build flexible six-way shuttle warehouse solutions.

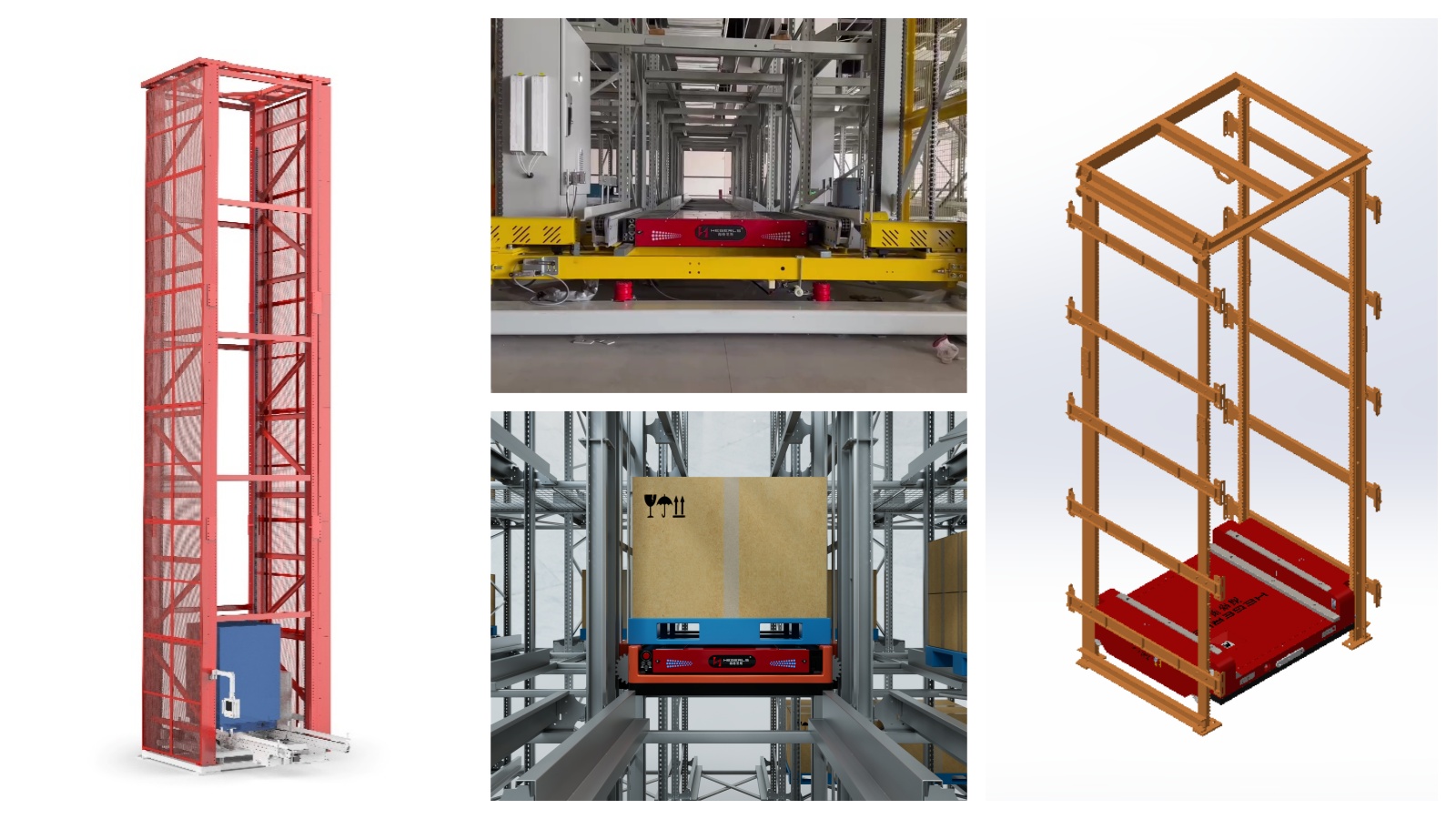

Traditional warehouse lifting systems usually rely on a lifting platform to transport goods or shuttle equipment between different levels.
The Zhuku Vertical Two-Way Shuttle adopts a different structure:
Traditional Lift SolutionGoods / Shuttle |
Zhuku Vertical Two-Way Shuttle SolutionPallet / Four-Way Shuttle The shuttle vehicle itself performs vertical movement, providing a more flexible and compact solution for multi-level automated warehouses. |
Direct Vertical MovementThe Vertical Two-Way Shuttle carries pallets or four-way shuttle vehicles and moves vertically between storage levels. Advantages:
|
Space-Saving DesignCompared with traditional lifting solutions, the compact shuttle-based design requires less installation space. Benefits:
|
High Precision PositioningAdvanced motion control technology ensures accurate positioning during vertical movement. Features:
|
Flexible ConfigurationThe system can be customized according to different warehouse requirements. Options:
|
The system completes vertical transfer by carrying pallets or shuttle vehicles between different storage levels.
The warehouse control system sends a storage or retrieval command.
The pallet or four-way shuttle enters the Vertical Two-Way Shuttle.

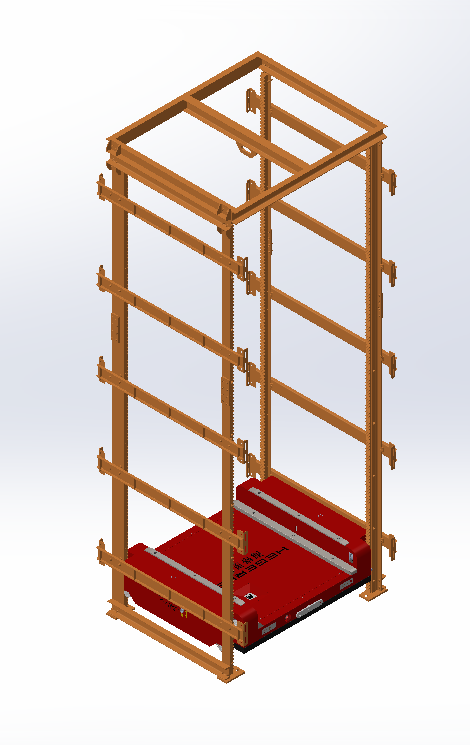

The shuttle vehicle moves vertically to the designated storage level.
The pallet or four-way shuttle leaves the equipment and continues the storage operation.
| Parameter | Specification |
| Equipment Type | Vertical Two-Way Shuttle System |
| Main Function | Vertical Transfer of Pallets / Four-Way Shuttle Vehicles |
| Application | Multi-Level Automated Storage |
| Rated Load Capacity | 1,000–1,500 kg |
| Vertical Running Speed | 0.3–0.5 m/s |
| Positioning Accuracy | ±3 mm |
| Fork Configuration | Single / Double Extension Fork |
| Compatible Equipment | Four-Way Shuttle System |
| Control Interface | WMS / WCS |
Note: Specifications beyond the listed ranges can be customized according to project requirements.
The Vertical Two-Way Shuttle provides a dedicated vertical transfer solution for shuttle-based warehouses, reducing dependence on conventional lift platforms.
The system can directly transport pallets or four-way shuttle vehicles between different storage levels.
Compact vertical shuttle movement helps reduce equipment space requirements and increase warehouse capacity.
Provides the Z-axis movement required for advanced multi-level shuttle warehouse systems.
Compatible with four-way shuttle systems, WMS, and WCS platforms for intelligent warehouse operation.
The Zhuku Vertical Two-Way Shuttle System is mainly designed for automated warehouses requiring efficient vertical layer transfer.

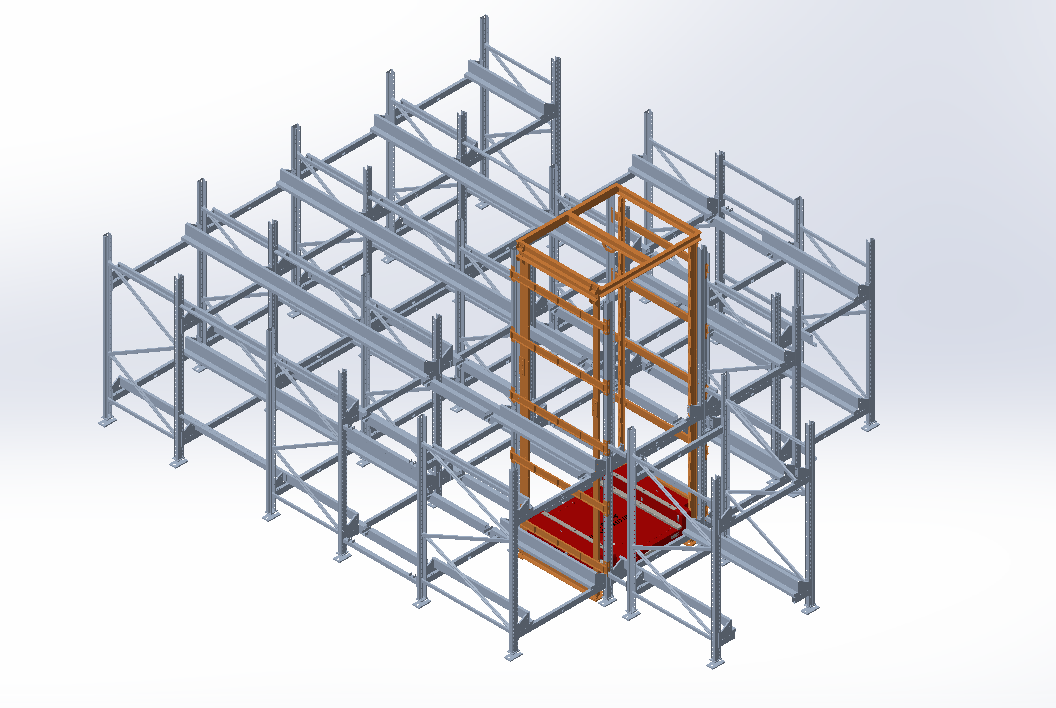

Six-Way Shuttle WarehouseAs the vertical movement unit of a six-way shuttle system, the Vertical Two-Way Shuttle provides Z-axis transfer capability. Combined with four-way shuttle technology:
It enables three-dimensional storage and retrieval operations. |
E-commerce Picking WarehouseSuitable for multi-level tote and pallet storage with high-frequency picking requirements. Applications:
|
Pharmaceutical Material StorageProvides accurate and stable vertical transfer for pharmaceutical raw materials. Benefits:
|
Cold Chain Food StorageDesigned for space-efficient storage and handling in temperature-controlled environments. Benefits:
|
Zhuku focuses on intelligent warehouse automation equipment and customized storage solutions.
The Vertical Two-Way Shuttle System provides:
By replacing traditional lift-based transfer methods, Zhuku helps customers achieve higher-density, more flexible, and more efficient automated storage operations.
