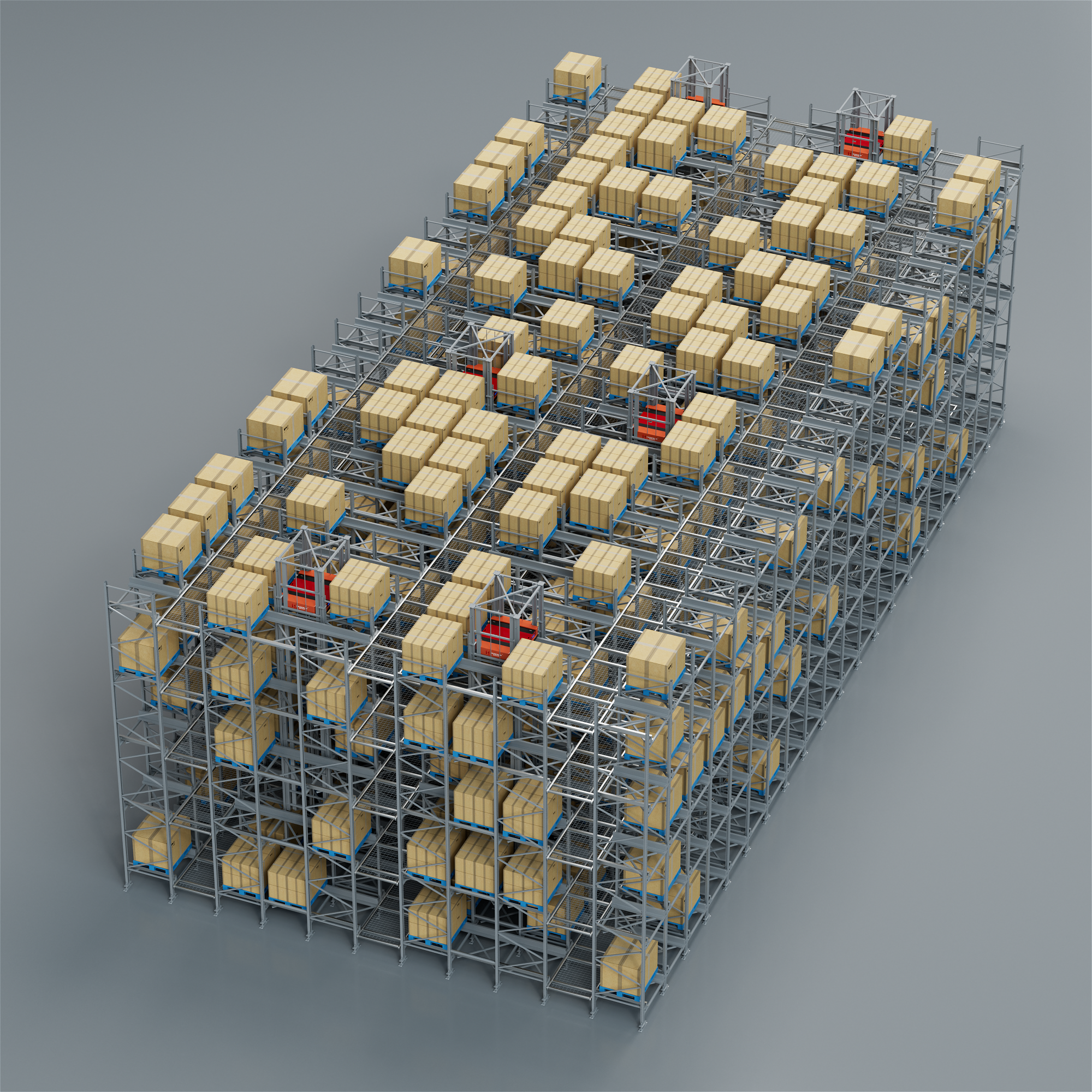

The Zhuku 6-Way Pallet Shuttle System is an intelligent storage and retrieval solution designed for warehouses requiring maximum storage density and operational flexibility.

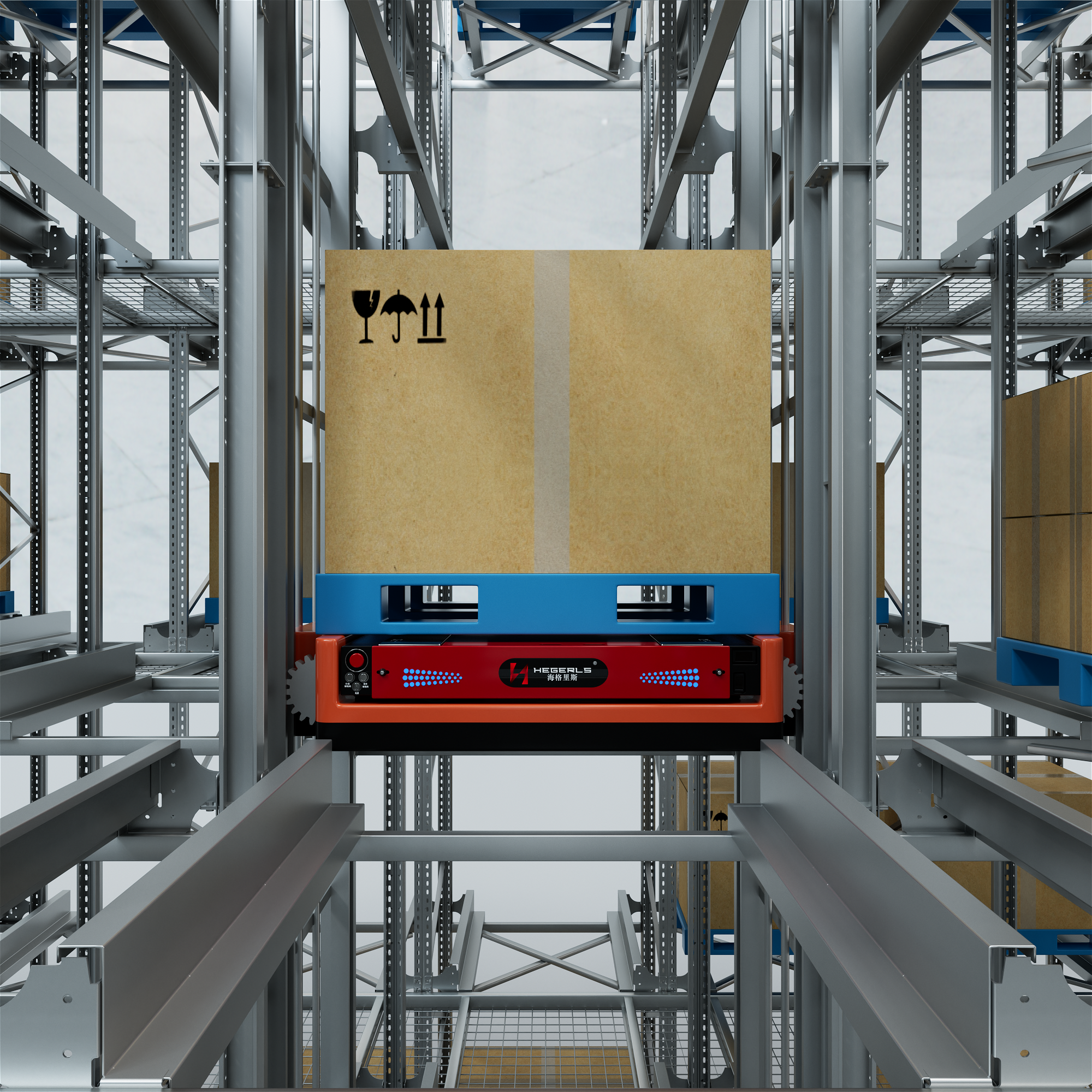

By combining a four-way pallet shuttle with a vertical transfer vehicle, the system enables seamless movement in six directions—forward, backward, left, right, up, and down—allowing pallets to reach any storage location without relying on forklifts or fixed lifting equipment.
Integrated with Warehouse Management Systems (WMS) and Warehouse Control Systems (WCS), the solution supports fully automated inbound, outbound, inventory transfer, and replenishment operations.
Whether for manufacturing, cold storage, retail distribution, or third-party logistics, the system delivers higher throughput while reducing labor costs and warehouse footprint.
Traditional shuttle systems require additional transfer equipment between storage levels, increasing waiting time and limiting operational flexibility.
The 6-Way Shuttle System removes these limitations by enabling both horizontal and vertical movement within one coordinated solution.
Benefits include:
| Warehouse Requirement | Six-Way Shuttle Suitability |
| High storage density | ★★★★★ |
| Multi-level pallet storage | ★★★★★ |
| Flexible pallet routing | ★★★★★ |
| Complex warehouse layout | ★★★★★ |
| High automation requirements | ★★★★★ |
| Limited floor space | ★★★★★ |
| High pallet volume | ★★★★ |
| Simple single-level storage | ★★ |
| Low-volume storage | ★★ |
| Maximum flexibility | ★★★★★ |
A Six-Way Shuttle is most suitable when a warehouse needs high-density pallet storage combined with flexible horizontal and vertical pallet movement across multiple storage levels.
A complete 6-Way Shuttle System typically includes:
| Component | Main Function | Role in Six-Way System |
| Four-Way Shuttle | Horizontal pallet movement | Forward/backward/left/right |
| Vertical Two-Way Shuttle | Vertical transfer | Up/down between levels |
| High-Density Racking | Storage structure | Provides multi-level storage |
| Conveyor | Pallet transportation | Connects storage with inbound/outbound |
| Inbound/Outbound Station | Pallet handover | Connects warehouse flow |
| WMS | Inventory management | Manages inventory and storage tasks |
| WCS | Equipment control | Coordinates all automation equipment |
| Charging System | Battery management | Supports continuous operation |

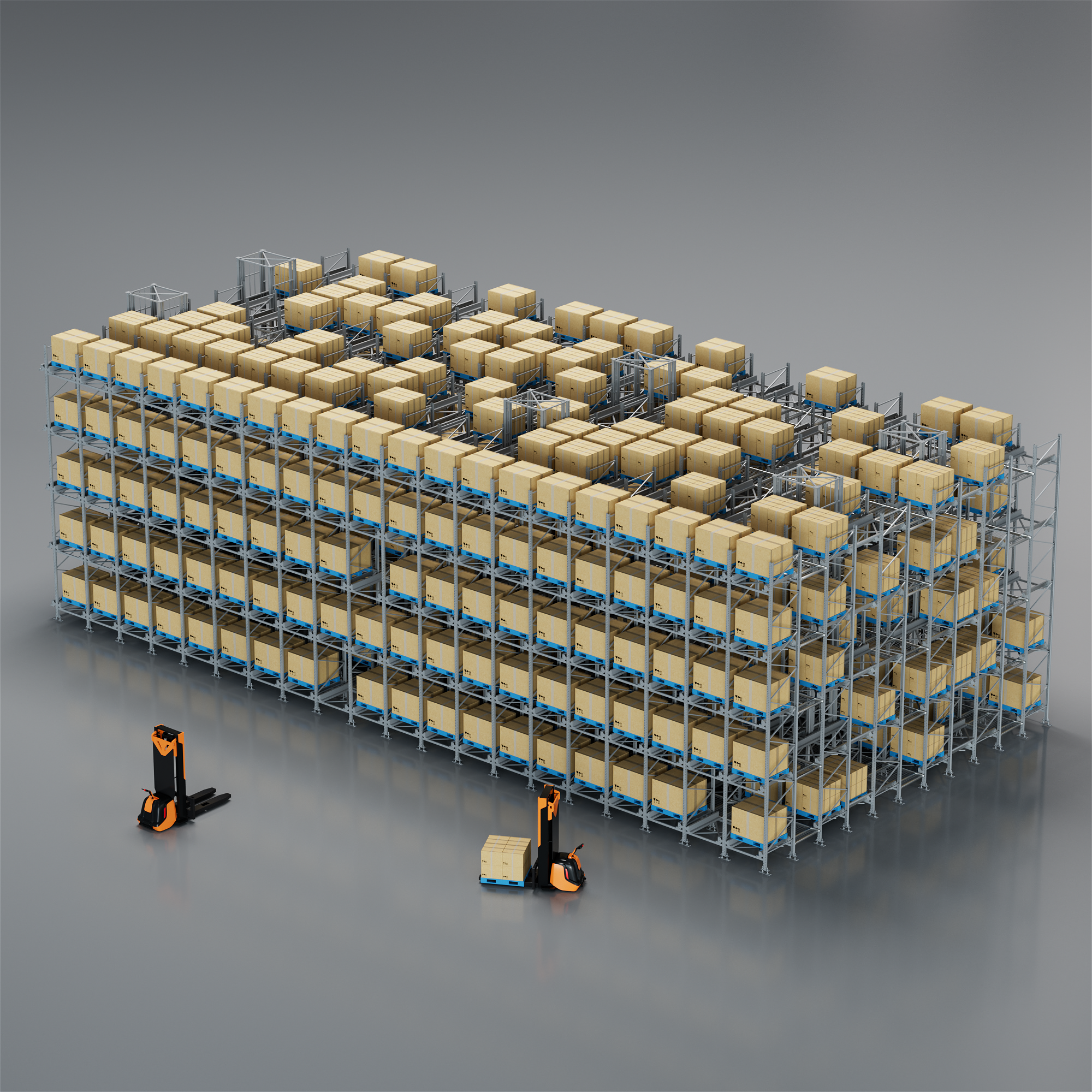

Multi-level deep-lane storage makes better use of warehouse floor area and available vertical space.
Multi-directional movement allows pallets to be transported across storage positions without being restricted to a single fixed lane.
Automated pallet movement reduces the need for forklifts to enter deep storage areas.
Horizontal and vertical transport can be coordinated through WCS to create continuous pallet flow.
Additional shuttle vehicles, storage lanes and automation equipment can be considered as operational requirements grow.
Integration with WMS provides centralized management of pallet locations and warehouse tasks.
The system can reduce unnecessary aisle requirements and increase the proportion of warehouse space dedicated to storage.
| Feature | Two-Way Shuttle | Four-Way Shuttle | Six-Way Shuttle |
| Horizontal movement | Forward / backward | Forward / backward + lateral | Forward / backward + lateral |
| Vertical movement | Separate equipment | Usually requires lift | Integrated vertical transfer capability |
| Multi-level operation | Limited | Yes | Yes |
| Layout flexibility | Medium | High | Very high |
| Automation level | Semi-automated | Highly automated | Highly automated |
| Storage density | High | Very high | Very high |
| Routing flexibility | Low | High | Very high |
| System complexity | Low | Medium | Higher |
| Best for | Deep-lane pallet storage | Flexible high-density storage | Multi-level flexible automation |
Choose Two-Way Shuttle for cost-effective deep-lane pallet storage, Four-Way Shuttle for flexible multi-directional storage, and Six-Way Shuttle when horizontal and vertical pallet movement must be coordinated across multiple storage levels.
| Factor | Six-Way Shuttle | Stacker Crane ASRS |
| Horizontal movement | Multi-directional | Fixed aisle |
| Vertical movement | Shuttle transfer | Crane mast |
| Storage flexibility | Very high | High |
| Layout flexibility | High | Medium |
| Storage density | Very high | Very high |
| Deep-lane storage | Excellent | Good |
| Equipment redundancy | Multiple shuttle vehicles possible | Crane per aisle/configuration |
| Best for | Flexible multi-level storage | High-bay fixed-aisle ASRS |
| System complexity | Higher | Medium-high |
| Typical use | Flexible high-density pallet storage | High-bay automated pallet warehouse |
Six-Way Shuttle is attractive when flexibility and multi-directional pallet movement are priorities, while Stacker Crane ASRS is often preferred for high-bay warehouses with stable aisle layouts and predictable pallet flows.
The 6-Way Shuttle System is ideal for:
Zhuku combines warehouse engineering, intelligent system integration, proprietary automation technologies, and manufacturing capabilities to deliver complete warehouse automation projects.
From warehouse planning and equipment manufacturing to software integration, installation, commissioning, and after-sales support, every project is managed through a single integration platform to ensure long-term reliability and operational performance.
A Six-Way Pallet Shuttle System can help you combine high-density storage with flexible horizontal and vertical pallet movement.
Send us your warehouse drawing (CAD, PDF or hand sketch) together with:
Warehouse dimensions and clear height
Pallet size and load weight
Required storage positions
Number of storage levels
Daily inbound and outbound volume
Current storage and material flow process
Our engineers will evaluate whether a Six-Way Shuttle, Four-Way Shuttle, Two-Way Shuttle, Stacker Crane ASRS or another storage technology is the right fit for your warehouse.
