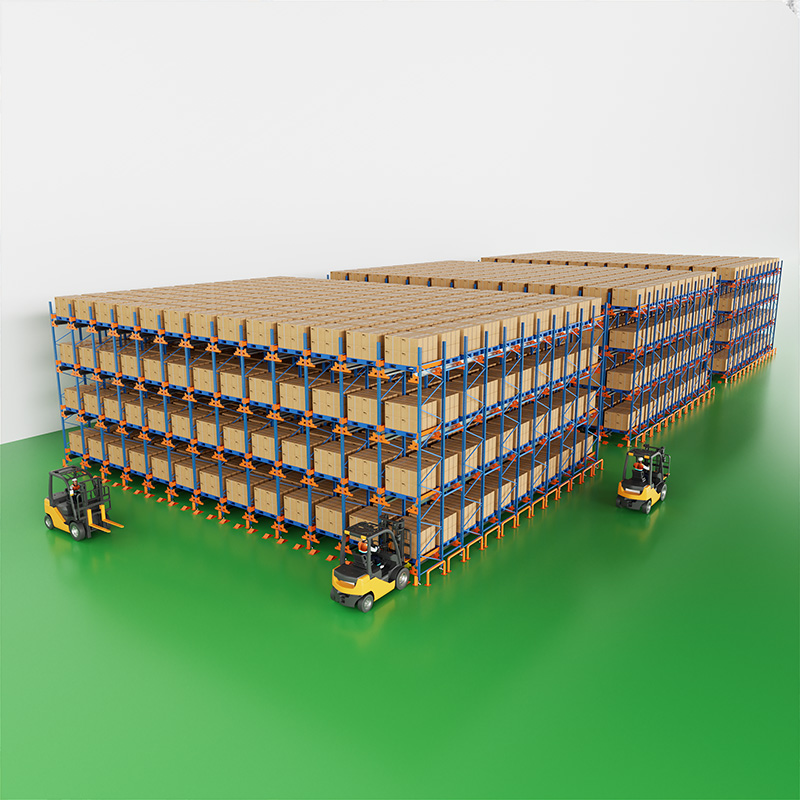

The Two-Way Shuttle System operates on a rail-guided mechanism where shuttle vehicles move forward and backward along storage lanes to transport pallets into deep storage positions. Forklifts are only required at the entry and exit points, significantly reducing traffic congestion inside the warehouse.
Two-way pallet shuttle system is typically used for high-volume, low-SKU or medium-SKU storage environments where efficiency, storage density, and operational safety are key priorities.
It serves as an ideal entry-level automation solution for companies transitioning from manual warehousing to intelligent logistics systems.

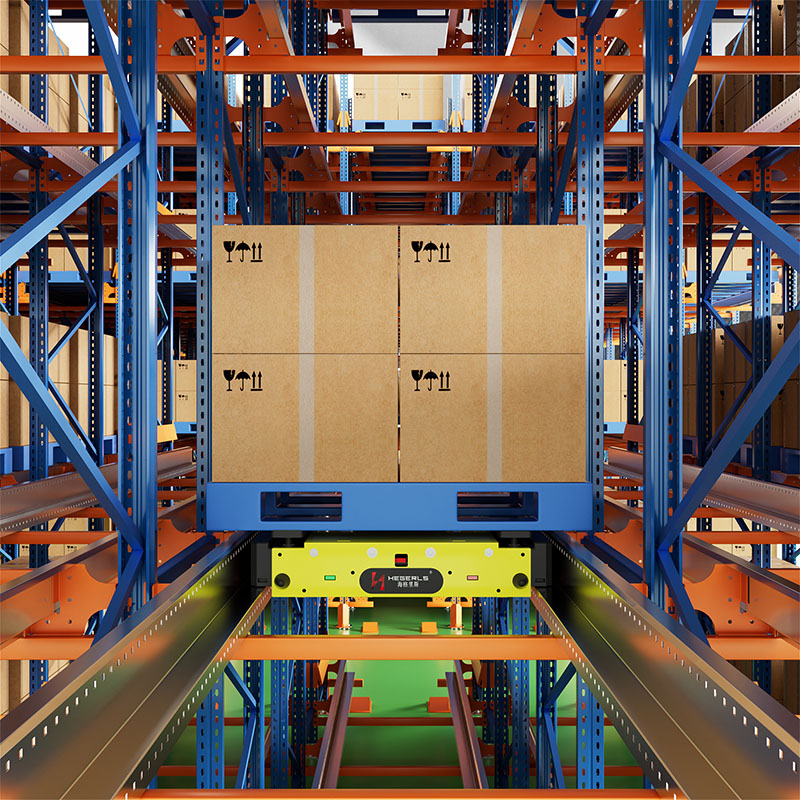

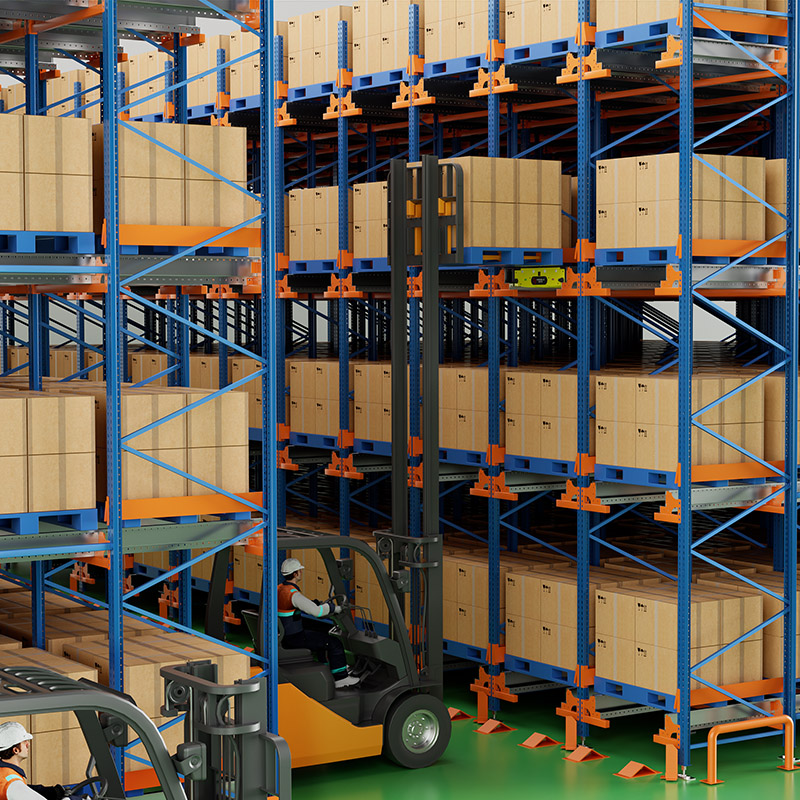

A Two-Way Pallet Shuttle System is a semi-automated high-density pallet storage system in which a rail-guided shuttle vehicle moves pallets forward and backward within deep storage lanes. Forklifts load and retrieve pallets at the lane entrance, while the shuttle transports pallets inside the racking structure.
Compared with conventional forklift-operated drive-in or selective racking, a two-way pallet shuttle system reduces forklift travel inside storage lanes, supports deeper pallet storage and improves warehouse space utilization.
| Warehouse Requirement | Two-Way Shuttle Suitability |
| High pallet volume | ★★★★★ |
| Low-to-medium SKU count | ★★★★★ |
| Deep-lane storage | ★★★★★ |
| High storage density | ★★★★★ |
| High SKU variety | ★★★ |
| Fully automated warehouse | ★★ |
| Semi-automated upgrade | ★★★★★ |
| Cold storage | ★★★★★ |
| Limited forklift access | ★★★★ |
| Frequent pallet movement | ★★★★ |
Two-Way Pallet Shuttle is most suitable for warehouses that need high-density pallet storage but do not require the full automation and multi-directional flexibility of a four-way shuttle or stacker crane AS/RS.

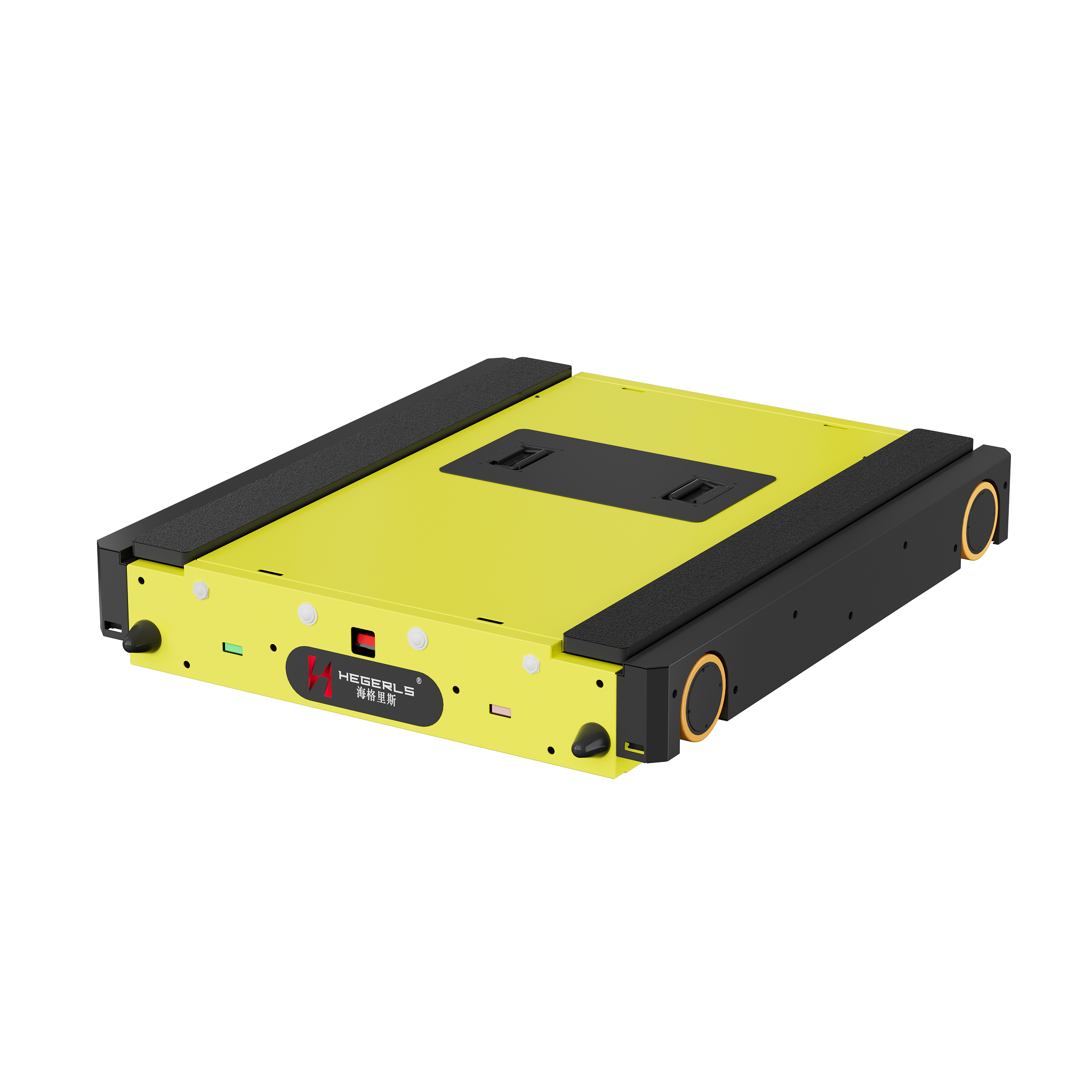

| Parameter | Two-Way Pallet Shuttle System Specification |

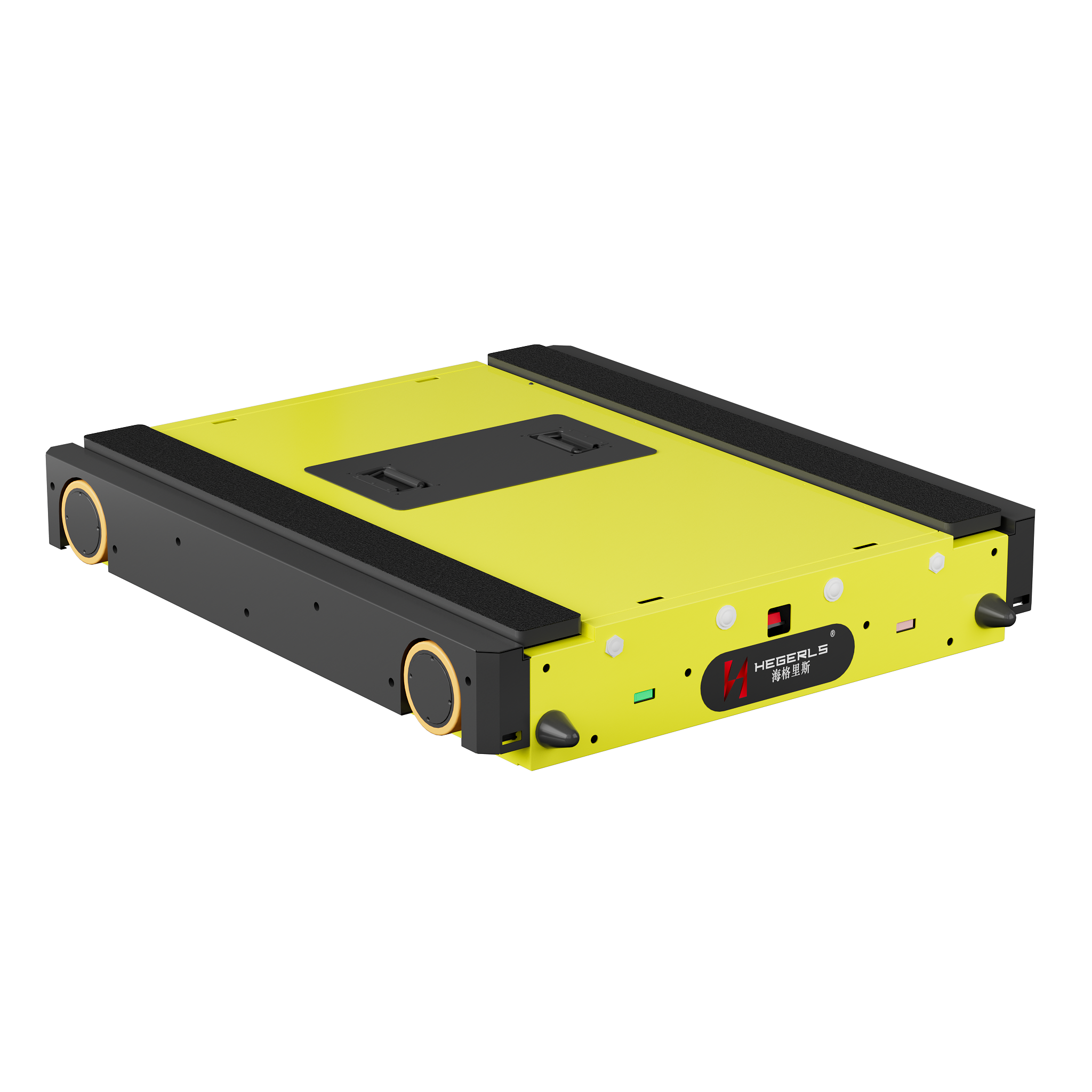

| Shuttle Type | Rail-Guided Two-Way Shuttle |
| Travel Direction | Forward & Backward |
| Pallet Handling | Single Pallet |
| Load Capacity | 1,700+ kg |
| Max. Travel Speed | 1.5 m/s |
| Positioning Accuracy | ±2 mm |
| Operating Temperature | -25°C to +45°C (Optional: -40°C Cold Storage Version) |
| Communication | Industrial Wireless Communication |
| Control Mode | Semi-Automatic / Manual |
| Inventory Strategy | FIFO / FILO |
| Operation Mode | Single Shuttle or Multi-Shuttle |
| Safety Functions | Anti-Collision, Emergency Stop, Automatic Alarm |
| Applicable Pallets | Standard Pallets (Customizable) |
| Warehouse Type | High-Density Deep Lane Storage |
| Expansion | Modular & Scalable Architecture |

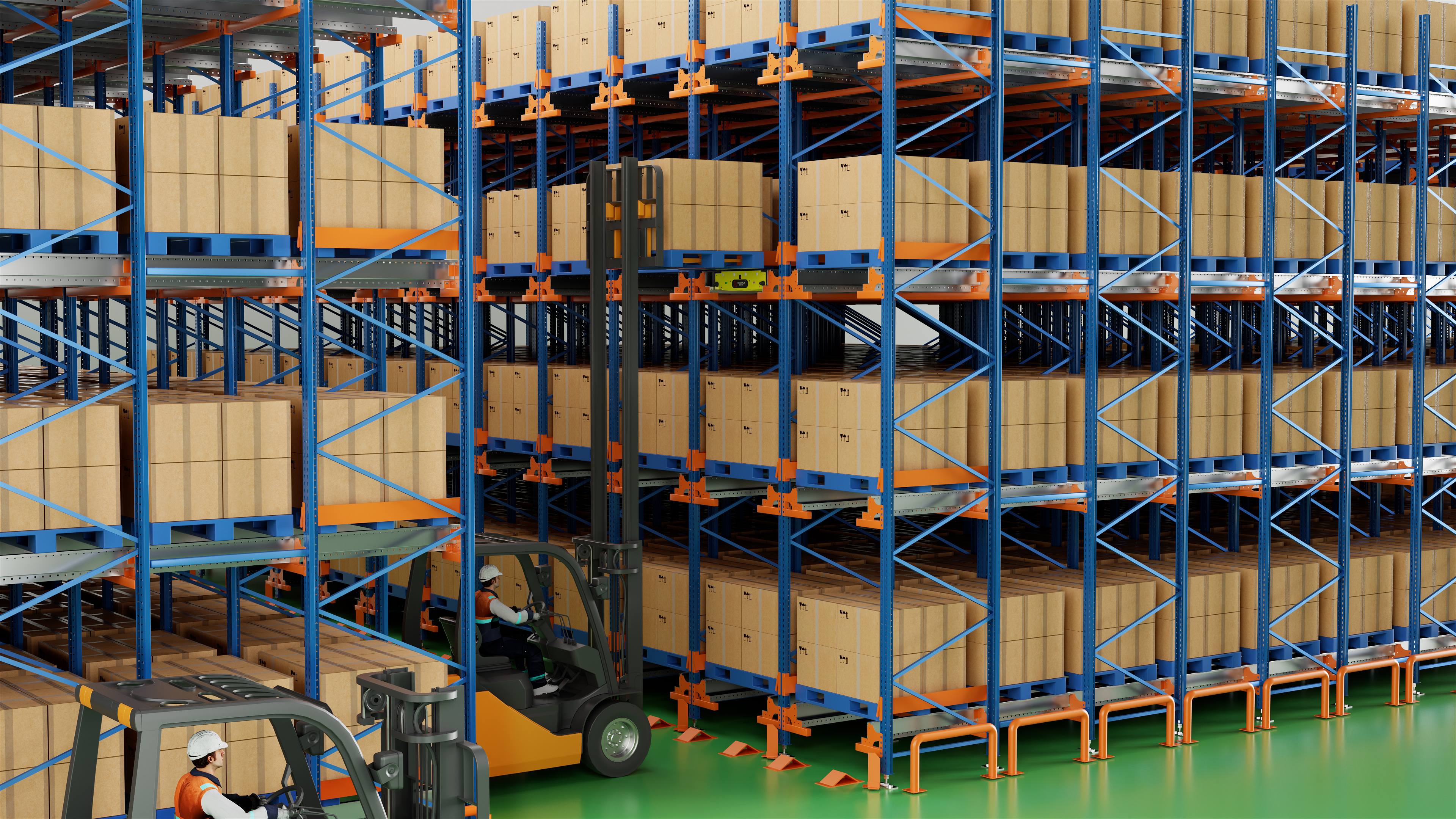

Pallets are placed at the warehouse entry point using a forklift. The shuttle vehicle receives commands and travels along the designated storage lane, transporting pallets to deep storage positions.
During outbound operations, the shuttle retrieves pallets from storage and delivers them back to the warehouse entry point, where forklifts handle final loading and shipment preparation.
This structured workflow reduces forklift travel distance, minimizes human error, and improves overall warehouse safety and efficiency.

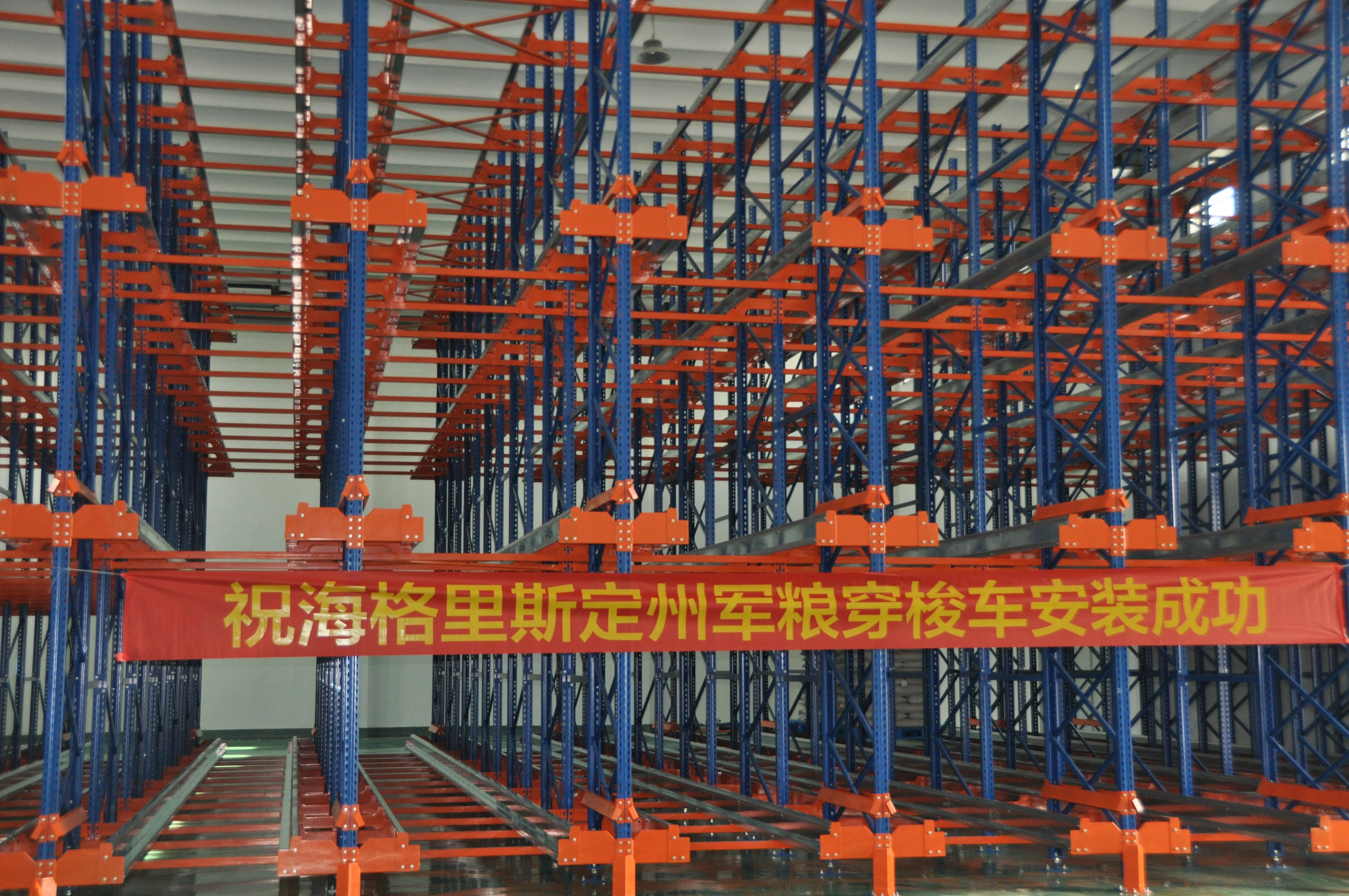

The two-way shuttle operates within deep-lane racking, eliminating unnecessary forklift aisles and significantly increasing storage capacity. Compared with conventional selective racking, storage density can be improved by 30–50%, with warehouse space utilization exceeding 90%.
Designed for continuous inbound and outbound operations, the shuttle travels at up to 1.5 m/s, completing a storage or retrieval task in 10–20 seconds and achieving throughput of 30–50 pallets per hour, greatly improving warehouse productivity.
As a semi-automated solution, the Two-Way Shuttle System offers a lower investment than fully automated AS/RS or four-way shuttle systems while delivering significant improvements in efficiency, making it an ideal choice for automation upgrades.
The modular architecture allows customers to start with a single storage aisle and expand capacity by adding shuttle vehicles, racking lanes, or software modules as business requirements grow, protecting long-term investment.
Built for industrial applications, the shuttle operates reliably in temperatures from -25°C to +45°C, making it suitable for cold storage, food processing, pharmaceuticals, manufacturing, and other demanding environments.
Equipped with intelligent anti-collision sensors, emergency stop protection, automatic obstacle detection, and precise positioning (±2 mm), the shuttle ensures safe and reliable operation. Its robust mechanical design reduces maintenance requirements and lowers lifecycle operating costs.
By reducing forklift travel and manual pallet handling, the system significantly lowers labor requirements while improving operational consistency and warehouse safety. Combined with energy-efficient lithium battery technology and modular expansion, it delivers a faster return on investment for growing businesses.
The Two-Way Shuttle System is widely used in industries requiring medium-to-high density storage with controlled SKU complexity.
ManufacturingEfficient storage of raw materials, semi-finished products, and finished goods. |
Food & BeverageSuitable for high-volume pallet storage with stable turnover rates. |
Cold Storage WarehousesOptional cold-resistant configuration for temperature-controlled logistics. |
Retail Distribution CentersImproves inventory turnover efficiency and reduces forklift dependency. |
Third-Party Logistics (3PL)Provides flexible and cost-effective storage for multiple clients. |
Chemical & PharmaceuticalProvide high-volume, controlled SKU, high-density and temperature-controlled pallet storage |
Zhuku provides complete warehouse automation integration solutions, combining engineering design, system planning, equipment manufacturing, software development, installation, commissioning, and lifecycle support.

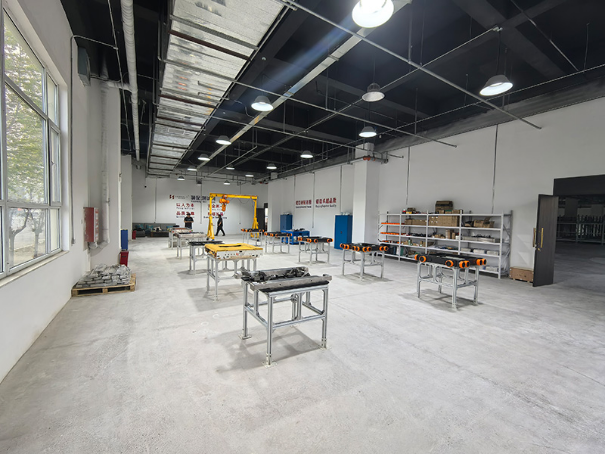

Supported by advanced manufacturing bases of over 120,000 m², proprietary automation technologies, and global project experience in 110+ countries, we deliver reliable and scalable warehouse automation systems tailored to customer requirements.
Our engineering team ensures that every system is optimized for efficiency, safety, and long-term operational value.
Zhuku designs the shuttle system and racking configuration around pallet dimensions, load weight, lane depth, storage capacity and warehouse layout.
The Two-Way Shuttle can be integrated with shuttle racking, conveyors, warehouse software and other material handling equipment.
Customers can start with semi-automated shuttle storage and expand the system with additional shuttles, storage lanes or other automation technologies as requirements grow.
Cold-storage configurations are available for temperature-controlled applications, subject to project requirements.
Zhuku supports warehouse planning, engineering design, equipment manufacturing, installation, commissioning, training and technical support.
A Two-Way Pallet Shuttle System can help you increase storage density while reducing forklift travel and manual pallet handling.
Send us your warehouse drawing (CAD, PDF or hand sketch) together with your pallet size, load weight, storage quantity and daily inbound/outbound volume.
Our engineers will evaluate whether a Two-Way Shuttle, Four-Way Shuttle, Stacker Crane AS/RS or another storage solution is the right fit for your warehouse.
First-hand experiences from customers worldwide, demonstrating the value of our warehouse automation solutions and project expertise.

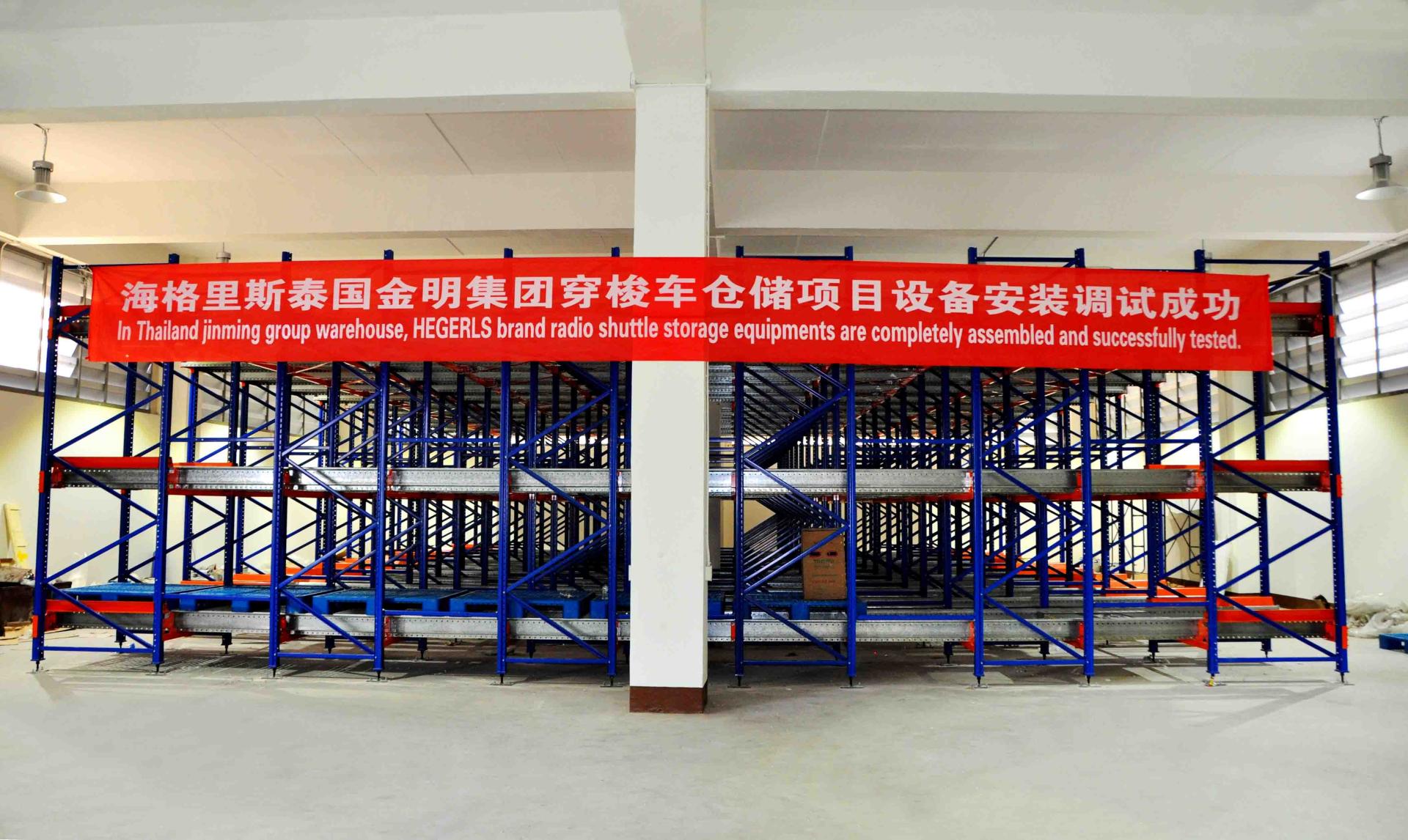

"Zhuku delivered a customized two-way shuttle solution that perfectly matched our storage requirements. The system increased warehouse capacity, optimized pallet flow, and reduced manual operations, providing a reliable solution for high-volume pallet storage."
