The Zhuku Mother-Child Shuttle System is an intelligent automated storage solution designed for deep-lane pallet storage and long-material handling applications.
The system consists of a mother shuttle and child shuttle working together. The mother shuttle is responsible for horizontal transportation between warehouse aisles, while the child shuttle separates from the mother shuttle and enters deep storage lanes for pallet storage and retrieval operations.
By combining efficient aisle transportation with flexible deep-position access, the Mother-Child Shuttle System helps warehouses maximize storage density, improve space utilization, and achieve more efficient automated material flow.
The system separates transportation and storage functions through coordinated operation between the mother shuttle and child shuttle.
The mother shuttle carries the child shuttle and moves horizontally between storage aisles.
After reaching the target storage position, the child shuttle separates from the mother shuttle.
The child shuttle enters the rack lane to complete pallet storage or retrieval.
The child shuttle returns to the mother shuttle for the next operation cycle.
The two shuttle vehicles perform different tasks to achieve efficient warehouse operation.
Mother ShuttleFunctions:
|
Child ShuttleFunctions:
|
|
|
|
The system is optimized for maximum warehouse space utilization.
Advantages:
Suitable for different warehouse layouts.
Supports:
Advanced control technology ensures stable and accurate operation.
Features:

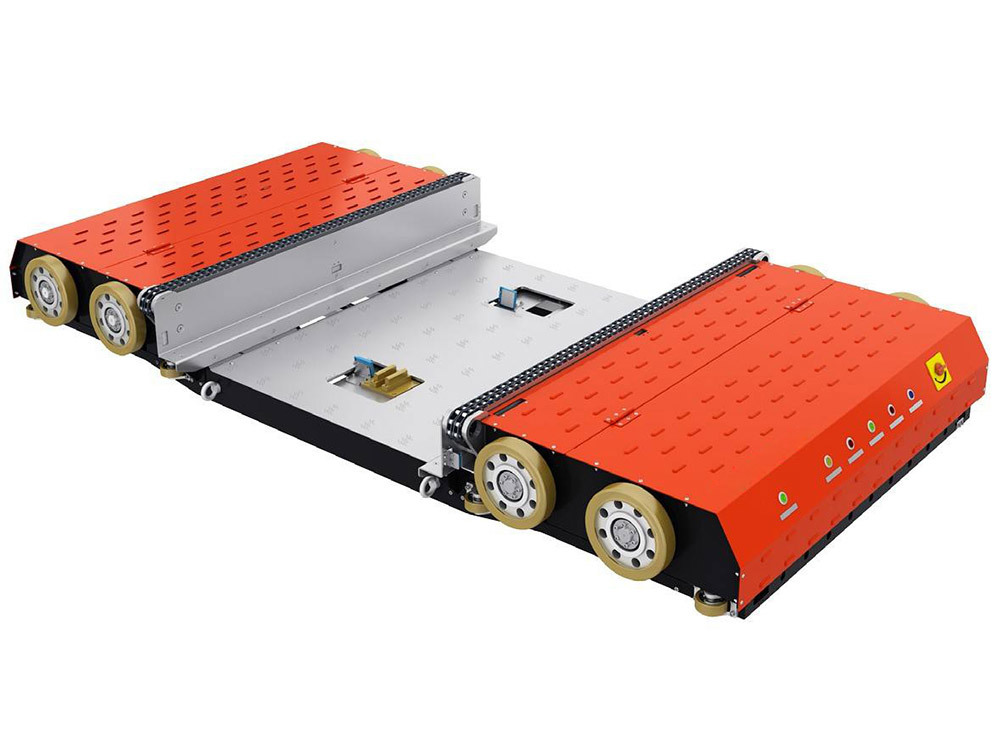

Mother ShuttleThe mother shuttle provides horizontal transportation between storage aisles. Main functions:
|

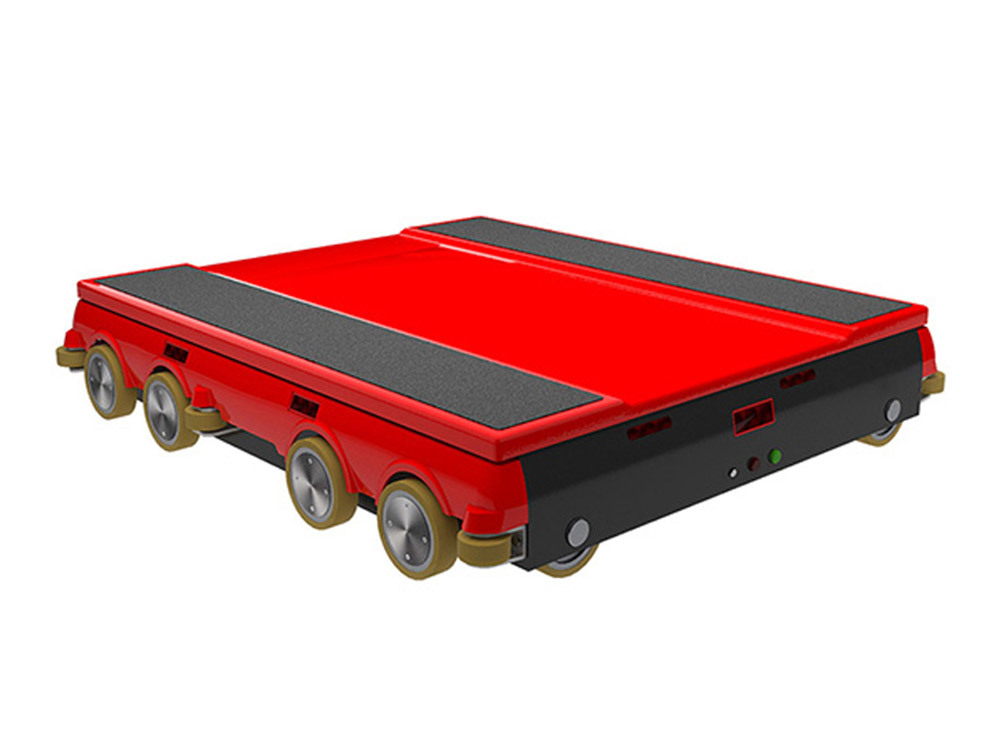

Child ShuttleThe child shuttle performs storage operations inside deep rack lanes. Main functions:
|
High-Density Racking SystemThe high-density racking system provides the storage structure for the Mother-Child Shuttle System. Features:
|
Lift SystemThe lift system provides vertical transfer capability for multi-level storage applications. Functions:
|
Control SystemThe control system coordinates mother-child shuttle operations. Functions:
|
Safety SystemEnsures reliable automated operation. Includes:
|
| Parameter | Specification |
| Rated Load Capacity | 2,000 kg |
| Running Speed | 1.5–2 m/s |
| Main Function | Horizontal Transportation |
| Operation Mode | Carrying Child Shuttle |
| Parameter | Specification |
| Rated Load Capacity | 1,000–1,500 kg |
| Running Speed | 1–1.5 m/s |
| Main Function | Deep Storage Operation |
| Operation Mode | Pallet Storage & Retrieval |
Note: Specifications beyond the listed ranges can be customized according to project requirements.
Higher Storage Density: Deep-lane storage capability helps maximize warehouse capacity.
Efficient Aisle Transportation: The mother shuttle provides fast movement between storage areas.
Flexible Deep Storage: The child shuttle independently accesses deep storage positions.
Improved Warehouse Utilization: The system reduces unnecessary aisles and increases storage efficiency.
Reliable Automated Operation: High-precision positioning ensures stable storage and retrieval performance.
Deep-Lane Pallet StorageDesigned for warehouses requiring high-density storage with multiple pallet positions in depth. Applications:
Benefits:
|
Long Material StorageSuitable for long and irregular materials that require flexible storage solutions. Typical materials:
Benefits:
|
Manufacturing IndustryIdeal for large-volume material storage in manufacturing environments. Applications:
|
Zhuku provides intelligent warehouse automation equipment and customized storage solutions for complex storage requirements.
The Mother-Child Shuttle System delivers:
By combining horizontal transportation and deep storage operations, Zhuku helps customers build efficient, flexible, and space-saving automated warehouses.
