A High Bay Warehouse is designed to maximize vertical storage capacity by utilizing greater warehouse heights and high-density pallet storage systems.
For businesses facing limited land, rising inventory volumes, or increasing warehouse operating costs, simply adding more floor space is often not the best solution. Zhuku helps customers store more pallets within the existing footprint by combining high-bay pallet racking, rack-supported structure, automated storage equipment, conveyors, lifts, and intelligent warehouse control systems.
From high-density pallet storage to fully automated operations, Zhuku provides customized high bay warehouse solutions based on warehouse height, storage capacity, product characteristics, throughput, and future expansion requirements.
Limited Floor Space?Solution: Vertical High Bay Storage When horizontal expansion is limited, Zhuku uses available vertical space to create additional storage levels. High-bay pallet racking and automated storage equipment allow customers to increase pallet capacity without significantly expanding the warehouse footprint. |
Storage Capacity Increasing Faster Than Warehouse Space?Solution: High-Density Pallet Storage For warehouses handling large pallet volumes, Zhuku combines deep-lane storage, high-bay racks, and automated shuttle or crane systems to increase storage density and make better use of every cubic meter. |
Too Much Forklift Traffic?Solution: Automated High Bay Warehouse Automated storage and retrieval equipment can handle pallet movement between receiving, storage, and shipping areas, reducing forklift dependency and improving warehouse safety and operational efficiency. |
High Warehouse Requires Difficult Manual Operations?Solution: Automated Vertical Material Handling As warehouse height increases, manual pallet handling becomes less efficient and more demanding. Zhuku integrates stacker cranes, shuttle systems, lifts, and conveyors to automate vertical and horizontal material movement. |
Difficult to Manage a Large High-Bay Warehouse?Solution: Intelligent Warehouse Control CC-WMS and YUNTU-WCS provide digital inventory management, equipment scheduling, storage location control, and real-time warehouse visibility for automated high-bay operations. |
Business Growing Rapidly?Solution: Scalable High Bay Warehouse System Zhuku designs high-bay warehouse systems with modular equipment and storage structures, allowing customers to expand storage lanes, equipment, and software functions as business requirements change. |
A high bay warehouse is a storage facility that makes extensive use of vertical space through tall storage structures and specialized material handling equipment.
Unlike conventional warehouses that primarily expand horizontally, a high-bay storage system increases capacity by creating additional vertical storage levels.
A typical automated high bay warehouse may include:
The exact configuration depends on warehouse height, pallet dimensions, load requirements, storage density, throughput, and automation objectives.

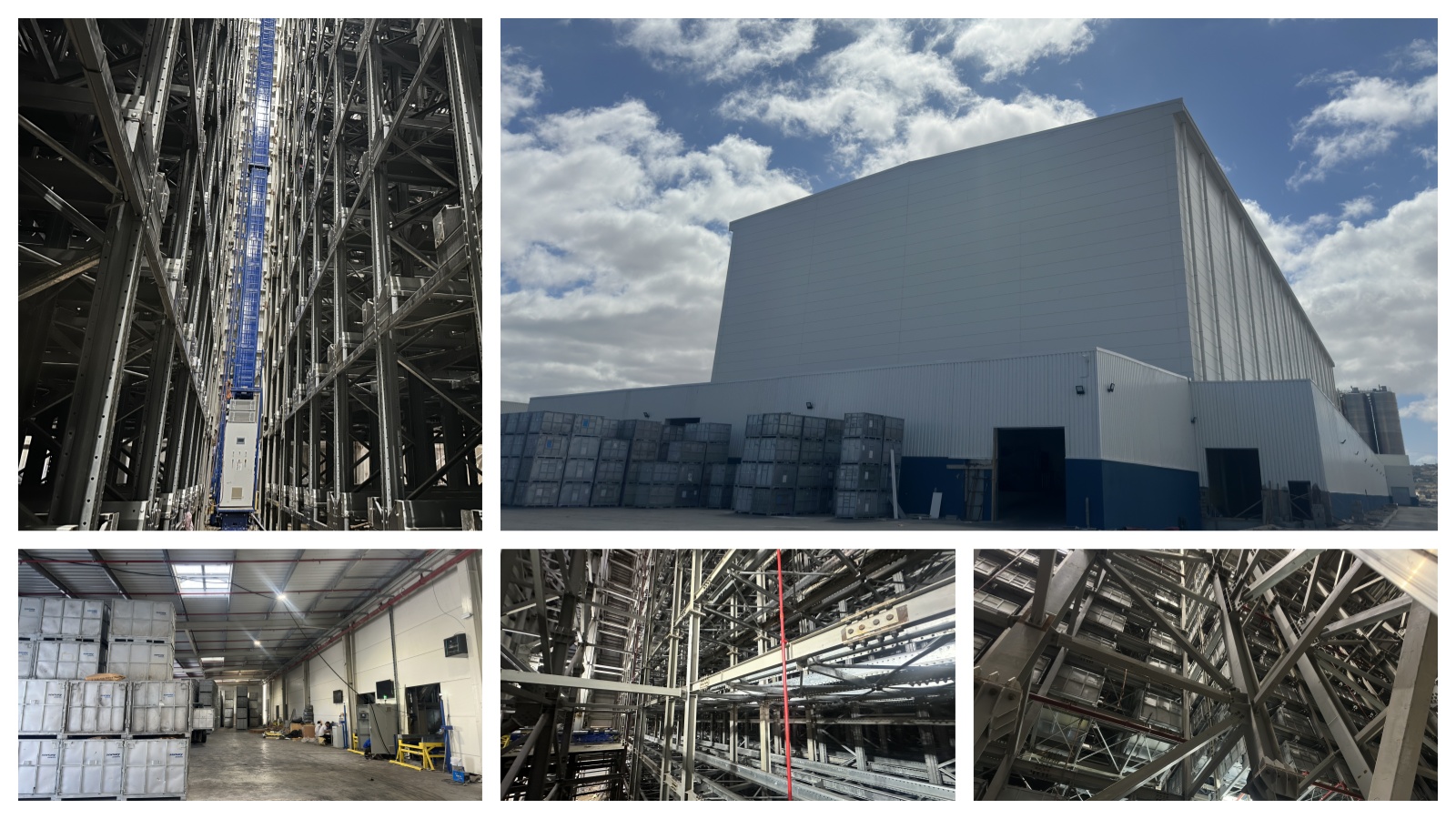

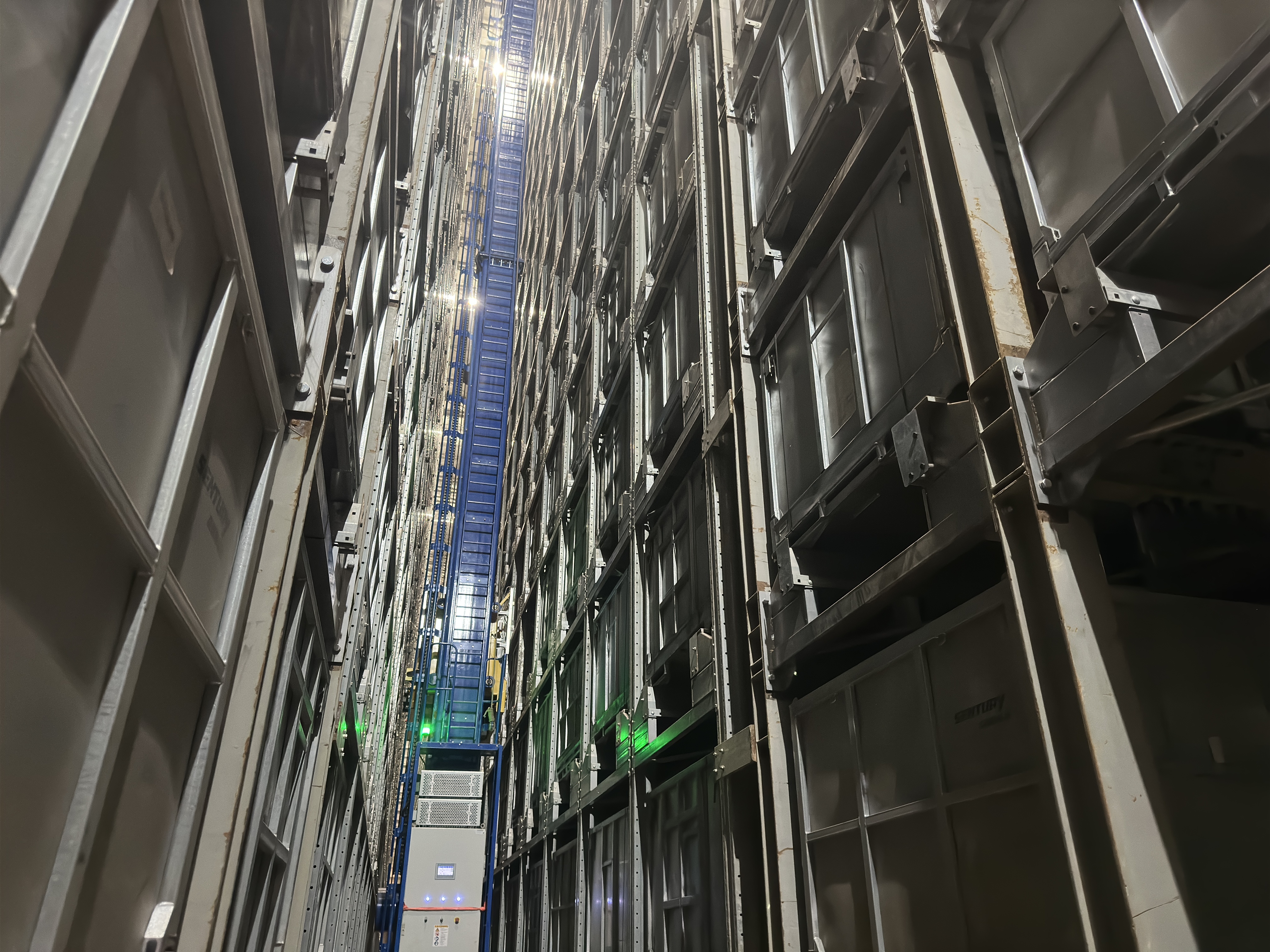

Stacker Crane High Bay WarehouseAutomated High-Bay Storage for Large Pallet Inventories Stacker cranes are ideal for high-density pallet storage where precise storage and retrieval are required. The crane travels horizontally and vertically within the rack structure, automatically completing pallet storage and retrieval operations. Suitable for:
|  |
 |

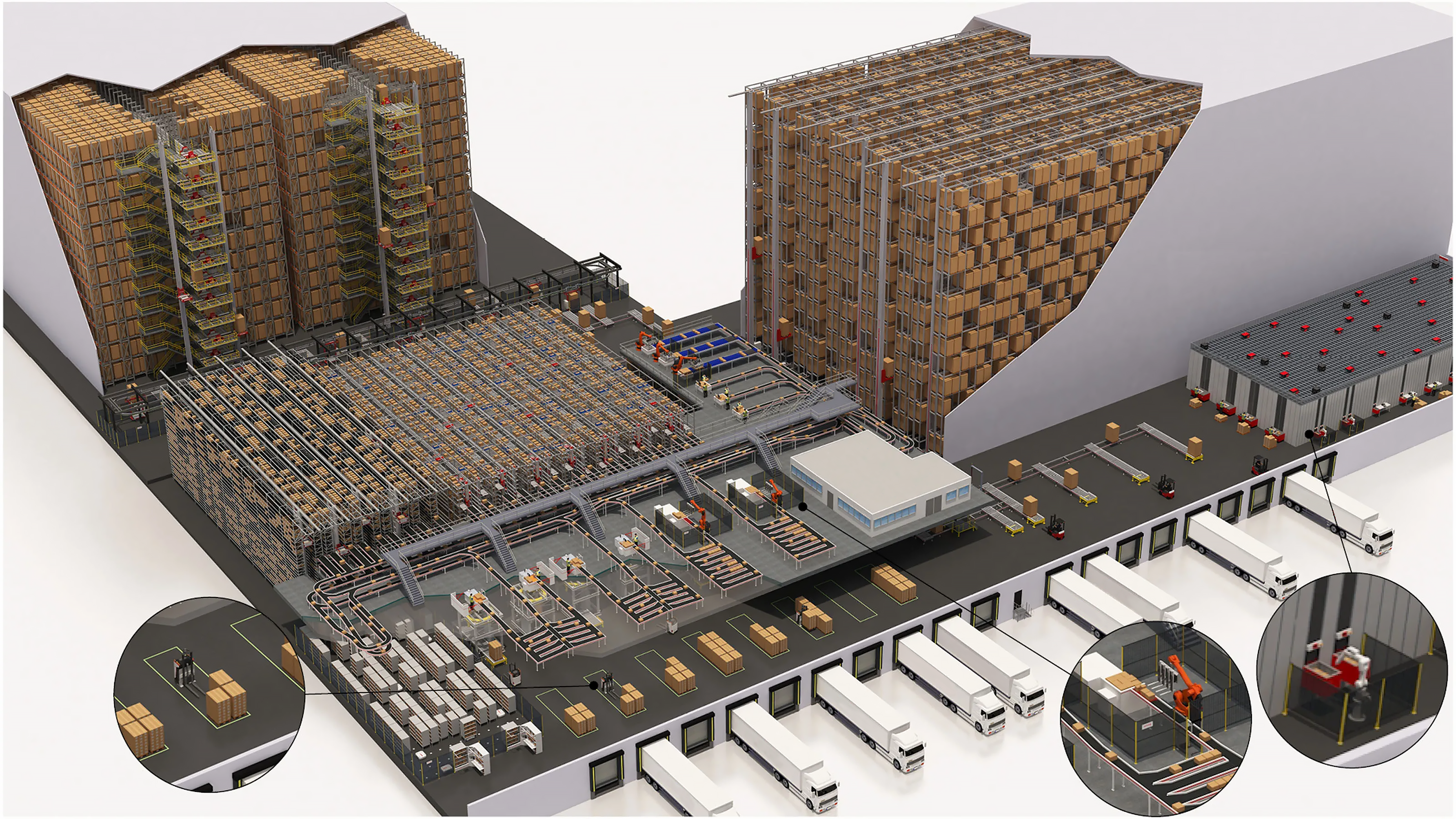

Rack-Supported High Bay WarehouseLarge-Scale High-Bay Automated Storage Rack-supported warehouses use the racking structure as the main building support, making them ideal for large-scale, high-bay automated warehouses. By integrating high-bay racking with stacker cranes, shuttles, conveyors, lifts, and WMS/WCS, Zhuku helps customers maximize vertical space and achieve high-density automated storage. Best suited for:
|

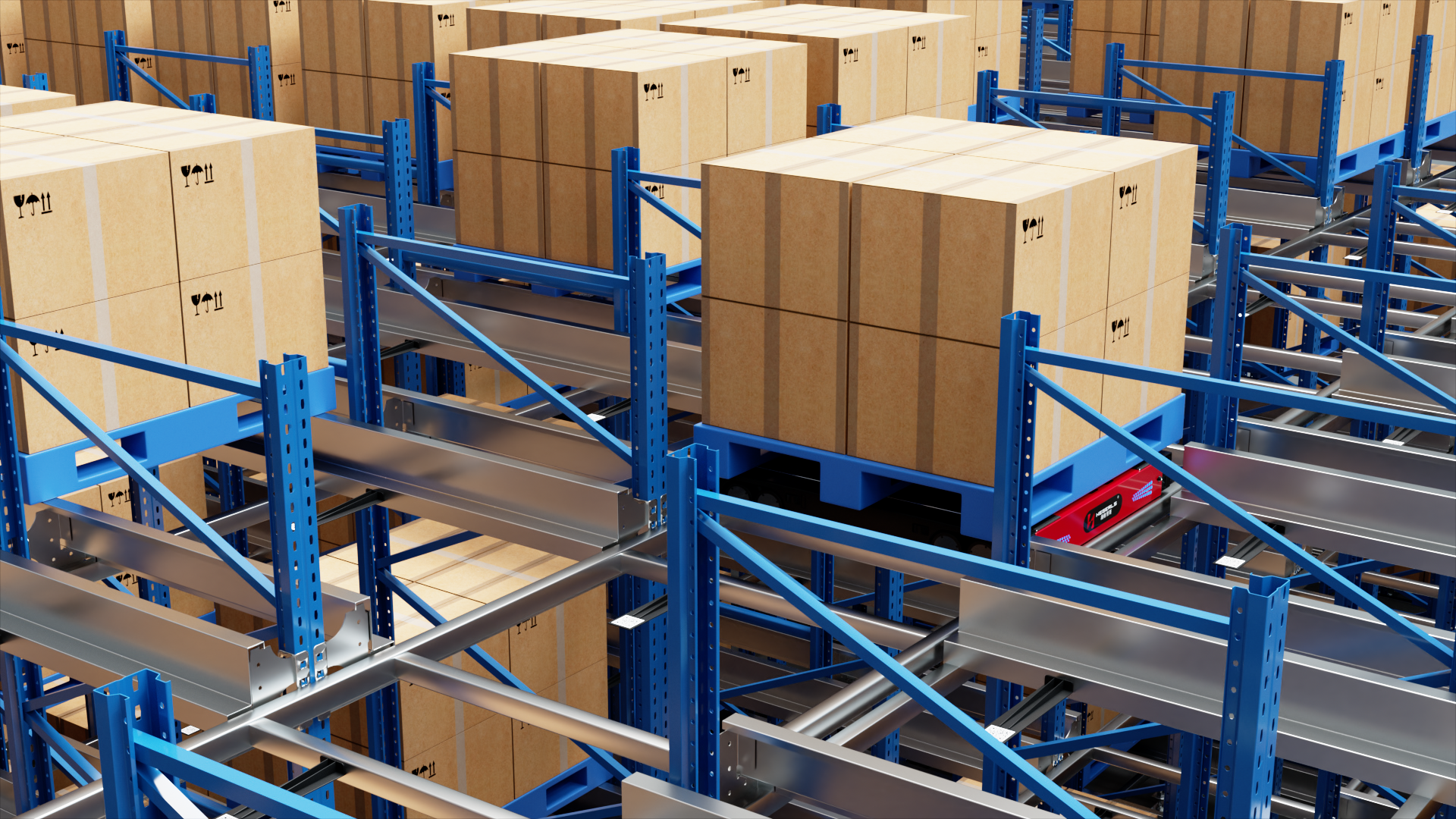

Four-Way Shuttle High Bay WarehouseFlexible Automated Storage for Deep-Lane Pallets Four-way shuttle systems provide flexible horizontal movement and can work with lifts and conveyors to create high-density automated storage. They are particularly suitable for warehouses requiring:
|  |
|
|

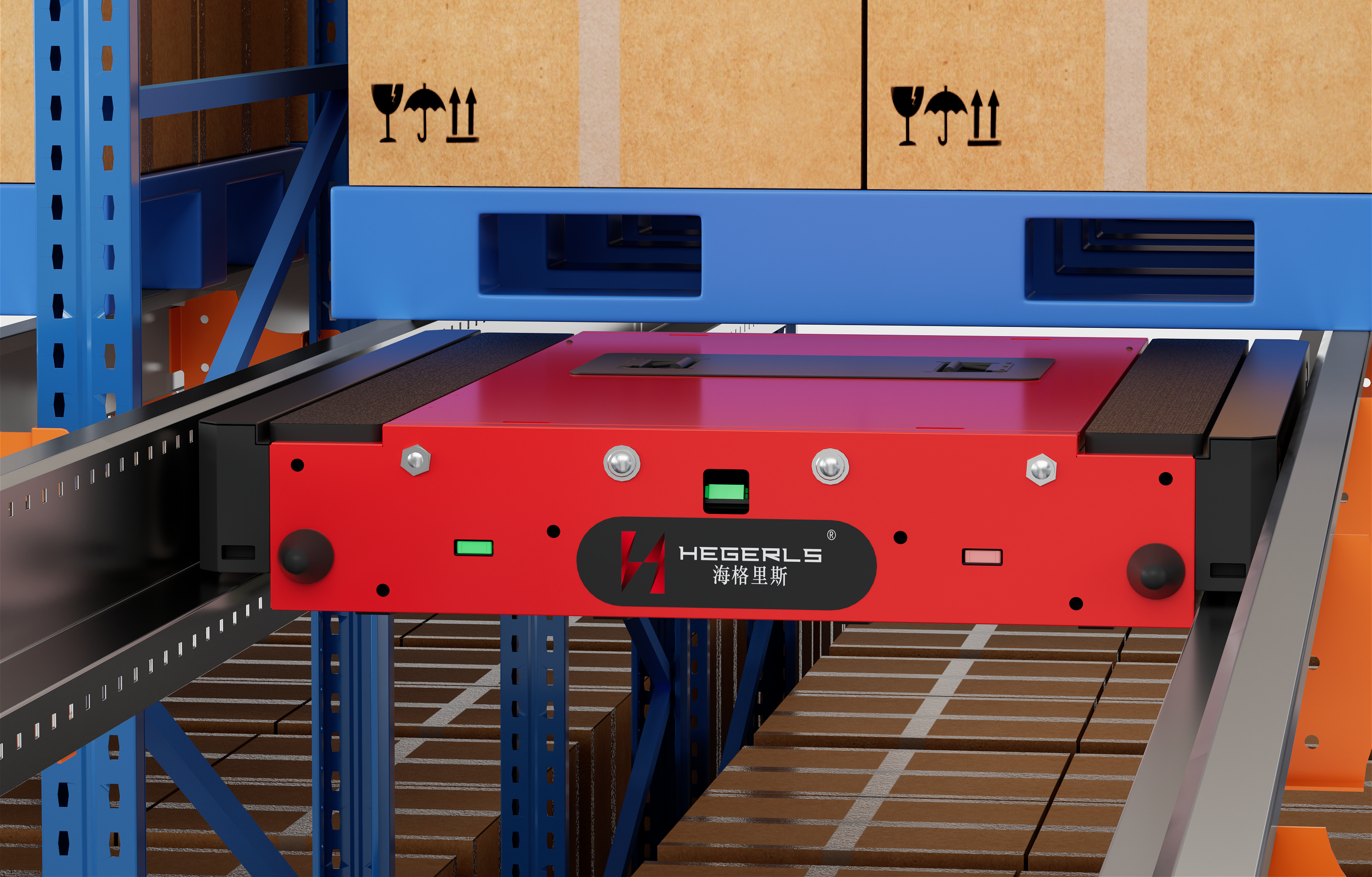

Radio Shuttle High Bay WarehouseHigh-Density Storage for Large-Volume Inventory Radio shuttle systems use shuttle vehicles to transport pallets deep inside storage lanes, reducing forklift travel and increasing storage density. They are suitable for:
|
High Bay Pallet RackingThe storage rack is the foundation of a high-bay pallet warehouse. Zhuku designs rack structures according to:
For large automated projects, rack-supported structures can also be considered to maximize vertical space. |

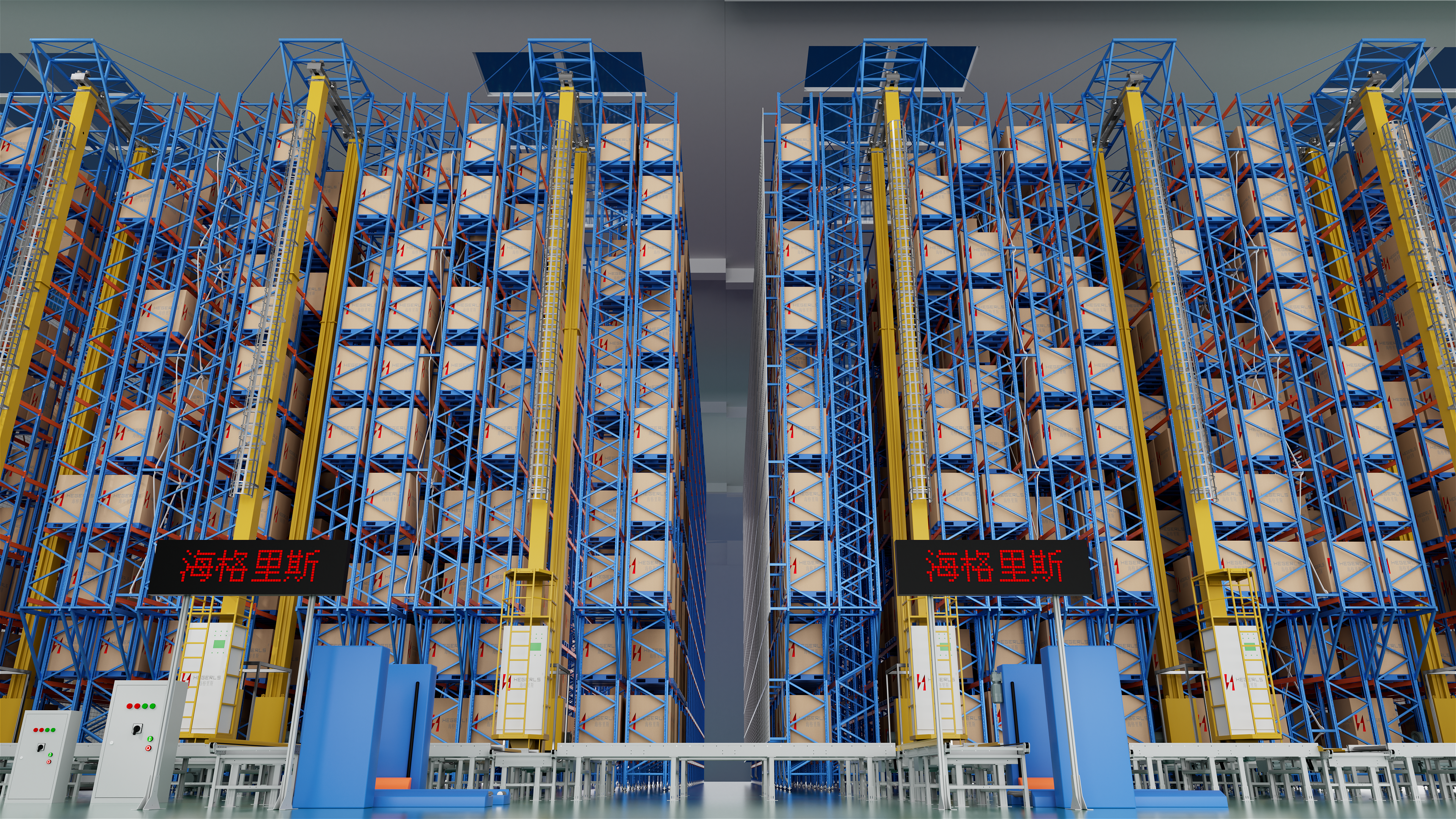

High Bay Warehouse CraneA high bay warehouse crane, typically a stacker crane, performs automated pallet storage and retrieval inside high-bay rack structures. The system can provide:
|
Pallet Shuttle SystemsFlexible Shuttle Technology for High-Density Pallet Storage Zhuku provides two-way, four-way, and six-way shuttle systems for different high-bay warehouse layouts and storage requirements. Depending on storage depth, throughput, warehouse height, and automation level, shuttle technology can be combined with high-bay racking, lifts, and conveyors to achieve dense and flexible pallet storage. |
Vertical Lift SystemLifts connect different warehouse levels and transfer pallets between storage, conveyor, and operational areas. They are commonly integrated with:
|
Automated Conveyor SystemConveyors connect receiving, storage, picking, production, and shipping areas. They provide continuous pallet transportation and help create a complete automated material flow. |
Warehouse RoboticsWarehouse robots such as AMRs, AGVs, and autonomous picking robots can be integrated with high-bay storage systems to automate pallet and material movement. Combined with conveyors, shuttles, lifts, and WMS/WCS, they provide flexible material handling and improve overall warehouse efficiency. Suitable for: pallet transport, order picking, goods-to-person operations, production logistics, and automated warehouse distribution. |
Receiving → Identification → CC-WMS → Storage Allocation → YUNTU-WCS → Automated Storage
The system identifies incoming pallets and assigns appropriate storage locations based on inventory rules, product characteristics, and warehouse conditions.
WCS Task → Stacker Crane / Shuttle → Storage Location → Inventory Update
The automation equipment executes the storage task while the warehouse system updates the pallet location.
Customer Order → WMS → WCS → Equipment Retrieval → Conveyor → Shipping
The system coordinates retrieval and transportation activities to deliver pallets to the designated outbound area.
High-bay storage allows businesses to utilize warehouse height rather than relying only on floor area.
High-bay pallet racking combined with automated equipment can significantly increase storage capacity within a limited footprint.
Automated cranes, shuttles, lifts, and conveyors reduce repetitive forklift operations and manual pallet movement.
Digital warehouse systems provide real-time information about inventory, storage locations, equipment status, and warehouse tasks.
A modular high-bay warehouse system can be expanded as inventory and throughput requirements increase.
ManufacturingHigh-bay warehouses can store raw materials, components, work-in-process inventory, and finished products close to production facilities. |
E-Commerce & DistributionHigh-density automated storage helps distribution centers manage large SKU volumes and high inventory turnover. |
Food & BeverageHigh-bay storage provides efficient pallet storage for standardized products and can be combined with temperature-controlled warehouse environments. |
AutomotiveSuitable for components, spare parts, tires, and finished vehicle-related products. |
Chemical IndustryHigh-density pallet storage can help chemical companies optimize storage space while reducing unnecessary material handling. |
Cold ChainAutomated high-bay storage is particularly valuable in cold storage, where maximizing cubic capacity can help improve the return on expensive refrigerated space. |
Zhuku combines warehouse planning, high-bay pallet racking, automation equipment, software, manufacturing, installation, and technical support to provide complete warehouse solutions.
We optimize warehouse height, rack layout, storage depth, aisle configuration, and equipment selection to maximize usable storage capacity.
Depending on your requirements, Zhuku can combine:
Stacker Crane + Four-Way Shuttle + Radio Shuttle + Conveyor + Lift + WMS/WCS
rather than forcing every project into one technology.
Warehouse height, pallet load, storage capacity, throughput, and operating environment are different for every customer. Zhuku develops the system around the actual warehouse rather than using a standardized configuration.
CC-WMS manages warehouse operations and inventory, while YUNTU-WCS coordinates automation equipment and warehouse tasks.
Zhuku can support the project through:
Planning → Engineering Design → Manufacturing → Installation → Commissioning → Training → After-Sales Support
The system can be designed for future capacity expansion, additional automation equipment, and software upgrades.
A complete high bay warehouse system can include:
| System | Main Function |
| High Bay Pallet Racking | High-density vertical storage |
| Stacker Crane | Automated pallet storage/retrieval |
| Rack-Supported Warehouse | Large high-bay facilities |
| Four-Way Shuttle | Flexible high-density pallet movement |
| Radio Shuttle | Deep-lane pallet storage |
| Conveyor | Automated pallet transportation |
| Vertical Lift | Vertical pallet transfer |
| CC-WMS | Warehouse management |
| YUNTU-WCS | Equipment control & scheduling |
Zhuku selects and combines these technologies according to the customer's actual storage and operational requirements.
A high-bay warehouse should not simply be taller.
The real objective is to make better use of every cubic meter while maintaining efficient, safe, and controllable warehouse operations.
Zhuku combines high-bay storage structures with automation and intelligent software to help customers move from:
More Floor Space
to
More Storage Capacity
and ultimately to
Smarter Warehouse Operations.
Tell Zhuku your warehouse dimensions, pallet specifications, storage capacity, and throughput requirements. Our engineering team can recommend the right high-bay storage and automation configuration for your project.
